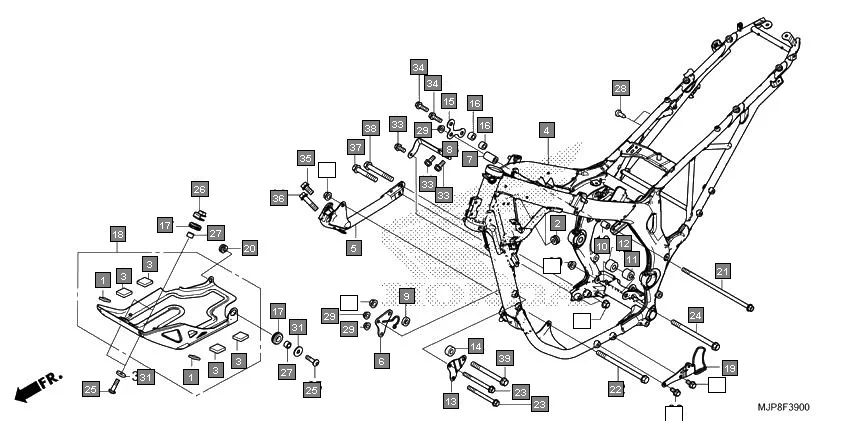

F-39 - FRAME BODY
HONDA Africa Twin CRF1000DH · 39 parts
Parts in This Assembly (39)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17225-MAH-610 | RUBBER B, CUSHION | 2 | |
| 2 | 17245-107-010 | RUBBER, AIR CLEANER CASE MOUNTING | 2 | |
| 3 | 17515-KFB-840 | RUBBER, TANK GUARD | 4 | |
| 4 | 50100-MJP-G50ZA | BODY COMP., FRAME *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 5 | 50170-MJP-G50ZA | PIPE COMP., R. LOWER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 6 | 50351-MJP-G50ZA | PLATE, R. FR. ENGINE HANGER *NH167MU* IRON NAIL SILVER METALLIC-U | 1 | |
| 7 | 50352-MJP-G50 | COLLAR C, R. ENGINE HANGER | 1 | |
| 8 | 50353-MJP-G50 | PLATE, FR. HEAD ENGINE HANGER | 1 | |
| 9 | 50354-MJP-G50 | COLLAR A, ENGINE HANGER | 1 | |
| 10 | 50355-MJP-G50 | COLLAR B, ENGINE HANGER | 1 | |
| 11 | 50356-MJP-G50 | COLLAR D, ENGINE HANGER | 1 | |
| 12 | 50357-MJP-G50 | COLLAR F, ENGINE HANGER | 1 | |
| 13 | 50358-MJP-G50ZA | PLATE, L. FR. ENGINE HANGER *NH167MU* IRON NAIL SILVER METALLIC-U | 1 | |
| 14 | 50359-MJP-G50 | COLLAR A, L. ENGINE HANGER | 1 | |
| 15 | 50361-MJP-G50ZA | PLATE, R. RR. ENGINE HANGER UPPER*NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 16 | 50362-MJP-G50 | COLLAR E, ENGINE HANGER | 2 | |
| 17 | 52491-MCA-000 | GROMMET, MOTOR MOUNTING | 3 | |
| 18 | 64440-MJP-G60 | PLATE COMP., SKID | 1 | |
| 19 | 64450-MJP-G50 | BRACKET, SKID PLATE | 1 | |
| 20 | 80101-283-000 | RUBBER, RR. FENDER CUSHION | 1 | |
| 21 | 90102-MJP-G50 | BOLT, FLANGE, 8X217 | 1 | |
| 22 | 90103-MY1-000 | BOLT, FLANGE, 10X153 | 1 | |
| 23 | 90113-KT0-670 | BOLT, FLANGE, 8X87 | 2 | |
| 24 | 90116-KW3-000 | BOLT, FLANGE, 10X138 | 1 | |
| 25 | 90128-KL4-000 | BOLT, SPROCKET FIXING | 3 | |
| 26 | 90321-MJP-G60 | NUT, CLIP, 8MM | 2 | |
| 27 | 90512-MJP-G60 | COLLAR, 8.5X14X9 | 3 | |
| 28 | 90841-001-000 | SCREW, RIVET, | 2 | |
| 29 | 94050-08080 | NUT, FLANGE, 8MM | 3 | |
| 30 | 94050-10080 | NUT, FLANGE, 10MM | 5 | |
| 31 | 94101-08000 | WASHER, PLAIN, 8MM | 3 | |
| 32 | 96300-08016-07 | BOLT, FLANGE, 8X16 | 2 | |
| 33 | 96300-08018-08 | BOLT, FLANGE, 8X18 | 3 | |
| 34 | 96300-08025-08 | BOLT, FLANGE, 8X25 | 2 | |
| 35 | 96300-10020-08 | BOLT, FLANGE, 10X20 | 1 | |
| 36 | 96300-10040-08 | BOLT, FLANGE, 10X40 | 1 | |
| 37 | 96300-10060-08 | BOLT, FLANGE, 10X60 | 1 | |
| 38 | 96300-10075-08 | BOLT, FLANGE, 10X75 | 1 | |
| 39 | 96400-10100-08 | BOLT, FLANGE, 10X100 | 1 | |
