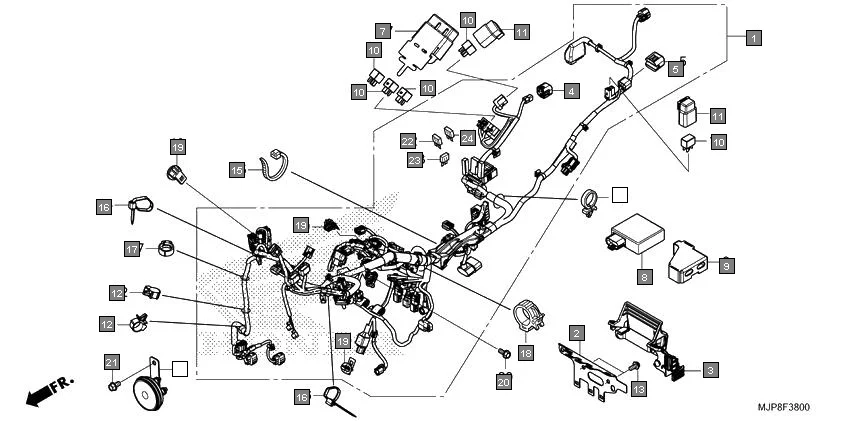

F-38 - WIRE HARNESS
HONDA Africa Twin CRF1000DH · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32100-MJP-T80 | HARNESS, WIRE | 1 | |
| 2 | 32155-MJP-G50 | STAY, HARNESS CLIP | 1 | |
| 3 | 32159-MJP-G50 | COVER, COUPLER | 1 | |
| 4 | 32606-GEV-761 | CAP, DUMMY(4P)(RED) | 1 | |
| 5 | 32606-MEL-D01 | CAP, DUMMY(6P)(NATURAL) | 1 | |
| 6 | 38100-MJP-MF0 | HORN ASSY. | 1 | |
| 7 | 38200-MJP-G50 | SUSPENSION, RELAY CASE | 1 | |
| 8 | 38301-MJP-G61 | RELAY COMP., WINKER(LED) | 1 | |
| 9 | 38306-MGH-640 | CUSHION, WINKER RELAY | 1 | |
| 10 | 38501-KWN-901 | RELAY COMP., POWER (MICRO ISO 4P)(OMRON) | 5 | |
| 11 | 38506-KVS-600 | SUSPENSION, POWER RELAY | 2 | |
| 13 | 90006-GHB-610 | BOLT, FLANGE, 6X12(NSHF) | 2 | |
| 14 | 90617-SA0-003 | CLIP, WIRE HARNESS | 1 | |
| 15 | 90620-SB2-003 | BAND, WIRE HARNESS | 1 | |
| 17 | 90683-KJ2-003 | CLIP, WIRE HARNESS | 1 | |
| 18 | 90690-GHB-671 | CLIP, CABLE, 25MM | 1 | |
| 21 | 95701-08014-07 | BOLT, FLANGE, 8X14 | 1 | |
| 22 | 98200-40750 | FUSE, MINI(7.5A) | 8 | |
| 23 | 98200-41000 | FUSE, MINI(10A) | 2 | |
| 24 | 98200-42000 | FUSE, MINI(20A) | 2 | |
