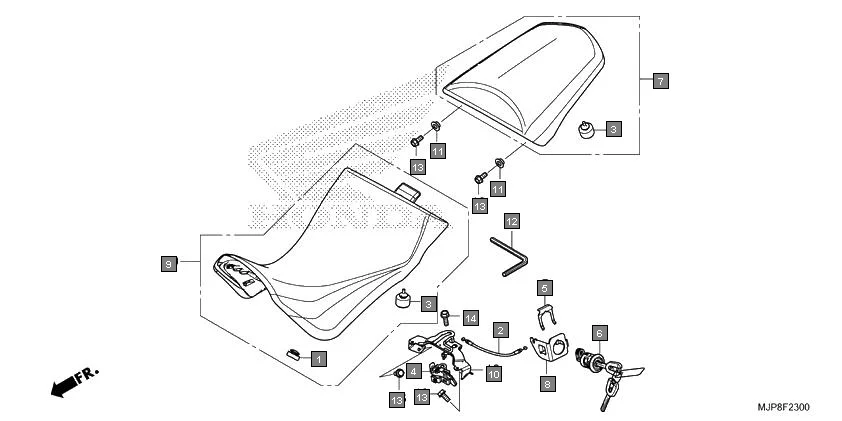

F-23 - SEAT
HONDA Africa Twin CRF1000DH · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77110-KA3-730 | RUBBER, SEAT MOUNTING | 1 | |
| 2 | 77156-MJP-G51 | CABLE, SEAT LOCK | 1 | |
| 3 | 77206-GF0-000 | RUBBER, SEAT CUSHION | 10 | |
| 4 | 77220-MJF-A01 | HOOK, SEAT CATCH | 1 | |
| 5 | 77235-MJE-D00 | PLATE, LOCK KEY SETTING | 1 | |
| 6 | 77239-MJM-D62 | KEY, SEAT LOCK(WAVE) | 1 | |
| 7 | 77300-MJP-DA0ZA | SEAT COMP., PILLION *TYPE3* | 1 | |
| 8 | 77321-MJP-G50 | STAY, SEAT LOCK CABLE | 1 | |
| 9 | 77500-MJP-F50ZB | SEAT COMP., MAIN(LOW) *TYPE3* | 1 | |
| 10 | 77582-MJP-G50 | STAY COMP., SEAT CATCH | 1 | |
| 12 | 89221-MGZ-J00 | WRENCH, HEX., 5MM | 1 | |
| 13 | 95701-06014-04 | BOLT, FLANGE, 6X14 | 4 | |
| 14 | 95701-06020-04 | BOLT, FLANGE, 6X20 | 1 | |
