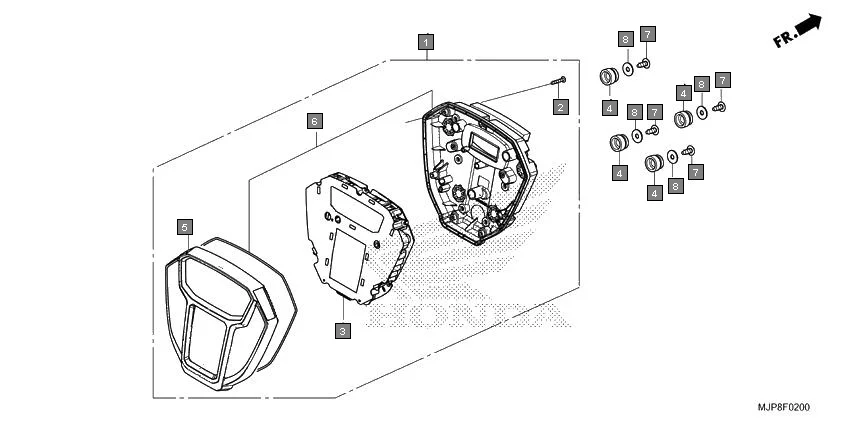

F-2 - METER
HONDA Africa Twin CRF1000DH · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37000-MJP-MF0 | METER ASSY. | 1 | |
| 2 | 37105-MJP-G51 | SCREW, TAPPING, 3X20 | 12 | |
| 3 | 37110-MJP-V11 | METER COMP., LCD(KPH) | 1 | |
| 4 | 37215-MGC-N40 | RUBBER, METER SETTING | 4 | |
| 5 | 37610-MJP-G51 | CASE ASSY., UPPER | 1 | |
| 6 | 37620-MJP-G51 | CASE ASSY., UNDER | 1 | |
| 7 | 93913-25380 | SCREW, TAPPING, 5X14(PO) | 4 | |
| 8 | 94103-05700 | WASHER, PLAIN, 5MM | 4 | |
