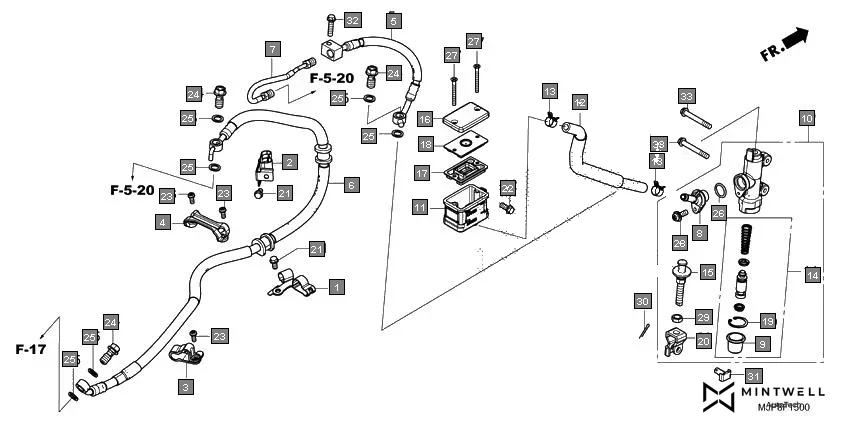

F-15 - REAR BRAKE MASTER CYLINDER
HONDA Africa Twin CRF1000DH · 33 parts
Parts in This Assembly (33)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43155-MJP-G80 | CLAMPER, RR. BRAKE HOSE | 1 | |
| 2 | 43156-MJP-G80 | CLAMPER A, RR. BRAKE HOSE | 1 | |
| 3 | 43157-MJP-G80 | GUIDE, RR. BRAKE HOSE | 1 | |
| 4 | 43158-MJP-G50 | GUIDE B, BRAKE HOSE | 1 | |
| 5 | 43310-MJP-G61 | HOSE COMP. A, RR. BRAKE | 1 | |
| 6 | 43311-MJP-G61 | HOSE COMP. B, RR. BRAKE | 1 | |
| 7 | 43320-MJP-G60 | PIPE COMP. A, RR. BRAKE | 1 | |
| 8 | 43503-MAH-671 | CONNECTOR, RR. BRAKE MASTER CYLINDER | 1 | |
| 9 | 43504-MB2-006 | BOOT COMP. | 1 | |
| 10 | 43510-MJP-G51 | CYLINDER SUB ASSY., RR. BRAKE MASTER(NISSIN) | 1 | |
| 11 | 43511-KV3-831 | CUP COMP., OIL | 1 | |
| 12 | 43512-MJP-G51 | HOSE COMP., RR. BRAKE MASTER CYLINDER | 1 | |
| 13 | 43514-KS6-701 | CLAMP. M/C OIL HOSE | 2 | |
| 14 | 43520-MJ6-315 | PISTON SET M/C | 1 | |
| 15 | 43530-MJ0-006 | ROD COMP., PUSH | 1 | |
| 16 | 45513-KK1-771 | CAP, MASTER CYLINDER | 1 | |
| 17 | 45520-MG7-006 | DIAPHRAGM | 1 | |
| 18 | 45521-HA2-006 | PLATE, DIAPHRAGM | 1 | |
| 19 | 46182-MEL-D21 | CIRCLIP | 1 | |
| 20 | 46504-MAL-601 | JOINT, BRAKE ROD | 1 | |
| 21 | 90013-GHB-610 | BOLT, FLANGE, 6X12 | 2 | |
| 22 | 90013-GHB-620 | BOLT, FLANGE, 6X14 | 1 | |
| 23 | 90107-MJP-G50 | SCREW, PAN, 5X12 | 3 | |
| 24 | 90145-MS9-612 | BOLT, OIL, 10X22(SAGA) | 3 | |
| 25 | 90545-300-000 | WASHER ,OIL BOLT | 6 | |
| 26 | 91212-422-006 | O RING | 1 | |
| 27 | 93600-04040-1G | SCREW, FLAT, 4X40 | 2 | |
| 28 | 93893-04012-17 | SCREW-WASHER, 4X12 | 1 | |
| 29 | 94002-08000-0S | NUT HEX.8 MM | 1 | |
| 30 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 31 | 95015-54000 | PIN D JOINT | 1 | |
| 32 | 96001-06025-07 | BOLT, FLANGE, SH. 6 X 25 | 1 | |
| 33 | 96001-06045-07 | BOLT, FLANGE, 6X45 | 2 | |
