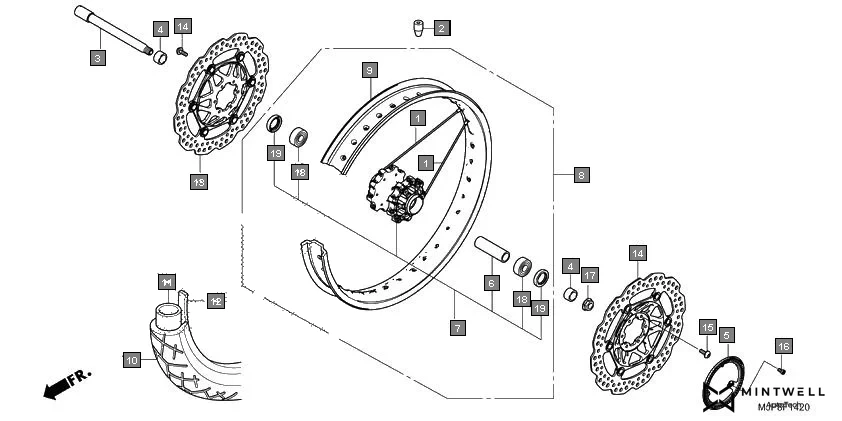

F-14-20 - FRONT WHEEL
HONDA Africa Twin CRF1000DH · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06440-MJP-G51 | SPOKE SET, FR. | 36 | |
| 2 | 42704-MEG-003 | WEIGHT, BALANCE(15G) | 1 | |
| 2 | 42705-MEG-003 | WEIGHT, BALANCE(20G) | 1 | |
| 3 | 44301-MJP-G50 | AXLE, FR. WHEEL | 1 | |
| 4 | 44311-MJP-G50 | COLLAR, FR. WHEEL SIDE | 2 | |
| 5 | 44515-MJP-G60 | RING, FR. PULSER | 1 | |
| 6 | 44620-MJP-G50 | COLLAR, FR. AXLE DISTANCE | 1 | |
| 7 | 44635-MJP-G50 | HUB SUB ASSY., FR. | 1 | |
| 8 | 44650-MJP-G51 | WHEEL SUB ASSY., FR. | 1 | |
| 9 | 44701-MJP-G61 | RIM, FR. WHEEL(21X2.15) | 1 | |
| 10 | 44711-MJP-G51 | TIRE, FR.(DUNLOP) (90/90-21 M/C 54H) | 1 | |
| 11 | 44712-400-004 | TUBE, TIRE(DUNLOP) | 1 | |
| 12 | 44713-KS6-641 | FLAP, TIRE(DUNLOP) | 1 | |
| 13 | 45120-MJP-G51 | DISK COMP., R. FR. BRAKE | 1 | |
| 14 | 45220-MJP-G61 | DISK COMP., L. FR. BRAKE | 1 | |
| 15 | 90106-MBB-000 | BOLT, DISK, 6X17 | 12 | |
| 16 | 90131-KPB-751 | BOLT, TORX, 5X10 | 3 | |
| 17 | 90304-MJP-G50 | NUT, FR. AXLE | 1 | |
| 18 | 91009-GE0-004 | BEARING, RADIAL BALL, 6004UU (NTN) | 2 | |
| 19 | 91257-MAY-003 | DUST SEAL, 28X42X8(NOK) | 2 | |
