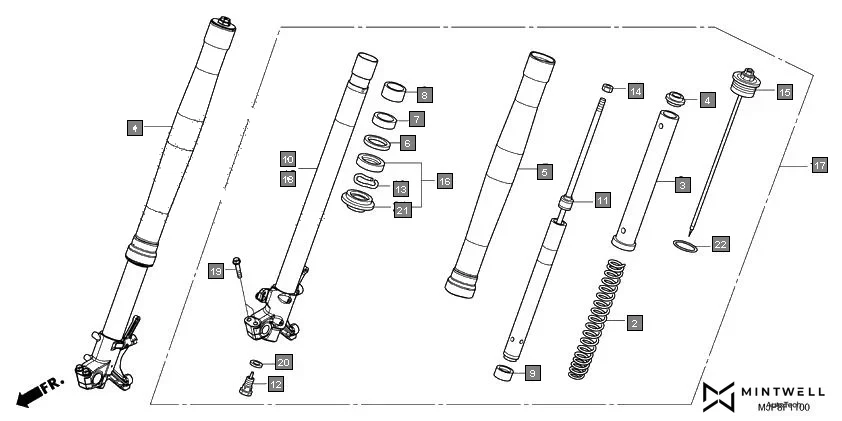

F-11 - FRONT FORK
HONDA Africa Twin CRF1000DH · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-MJP-G81 | FORK ASSY., R. FR.(SHOWA) | 1 | |
| 2 | 51401-MJP-G51 | SPRING, FR. FORK | 2 | |
| 3 | 51404-MJP-G51 | COLLAR COMP., SPRING | 2 | |
| 4 | 51406-MW4-003 | STOPPER, SPRING SEAT | 2 | |
| 5 | 51410-MJP-G51 | TUBE, OUTER | 2 | |
| 6 | 51412-KZ3-003 | RING, BACK UP | 2 | |
| 7 | 51414-MFR-671 | BUSH, GUIDE | 2 | |
| 8 | 51415-MFR-671 | BUSH, SLIDER | 2 | |
| 9 | 51421-KAE-871 | PLATE, CENTERING(SHOWA) | 2 | |
| 10 | 51425-MJP-G51 | PIPE SUB COMP., R. SLIDE | 1 | |
| 11 | 51430-MJP-G51 | DAMPER COMP., FR. | 2 | |
| 12 | 51441-MJP-G51 | BOLT COMP., CENTER | 2 | |
| 13 | 51447-KZ3-003 | RING, OIL SEAL STOPPER | 2 | |
| 14 | 51451-MAJ-G41 | NUT, HEX., 10MM | 2 | |
| 15 | 51454-MJP-G51 | BOLT COMP., FR. FORK | 2 | |
| 16 | 51490-MJP-G51 | SEAL SET, FR. FORK | 2 | |
| 17 | 51500-MJP-G81 | FORK ASSY., L. FR.(SHOWA) | 1 | |
| 18 | 51525-MJP-G61 | PIPE SUB COMP., L. SLIDE | 1 | |
| 19 | 90109-MR7-000 | BOLT, FLANGE, 8X45 | 4 | |
| 20 | 90544-KS7-003 | WASHER, SPECIAL | 2 | |
| 21 | 91254-KZ3-003 | SEAL, DUST | 2 | |
| 22 | 91356-KZ3-003 | O-RING, 44.7X2.4 | 2 | |
