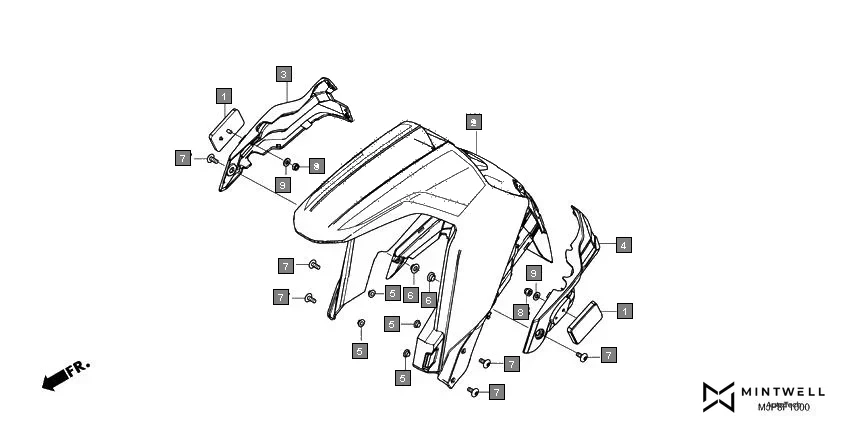

F-10 - FRONT FENDER
HONDA Africa Twin CRF1000DH · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33741-MCW-D01 | REFLECTOR, FR. REFLEX | 2 | |
| 2 | 61000-MJP-F50ZA | FENDER SET, FR.(WL) *TYPE1* | 1 | |
| 3 | 61101-MJP-G50 | COVER, R. FR. FENDER | 1 | |
| 4 | 61102-MJP-G50 | COVER, L. FR. FENDER | 1 | |
| 5 | 61105-MJP-G50 | COLLAR, FR. FENDER | 4 | |
| 6 | 80118-MFJ-D00 | COLLAR, FENDER | 2 | |
| 7 | 90117-KPM-000 | SCREW, PAN, 6X14 | 6 | |
| 8 | 90302-435-761 | NUT, HEX., 5MM | 2 | |
| 9 | 90401-ZVA-000 | WASHER, 6MM | 2 | |
