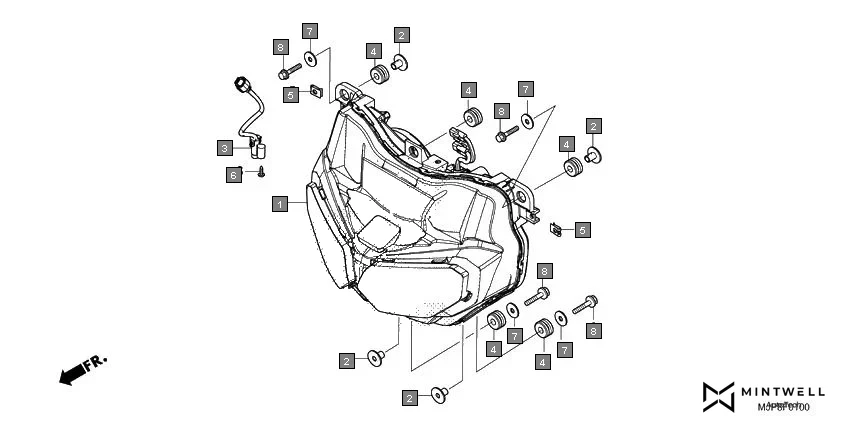

F-1-HEADLIGHT
HONDAAfrica Twin CRF1000DH · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33100-MJP-G51 | HEADLIGHT ASSY. | 1 | |
| 2 | 33111-MGH-640 | COLLAR | 4 | |
| 3 | 37880-MJP-G51 | SENSOR, OPEN AIR TEMPERATURE | 1 | |
| 4 | 61103-MJP-G50 | RUBBER, HEADLIGHT | 5 | |
| 5 | 90677-KAN-961 | NUT CLIP 5MM | 2 | |
| 6 | 93903-24280 | SCREW, TAPPING, 4X10 | 1 | |
| 7 | 94103-06000 | WASHER PLAIN,6MM | 4 | |
| 8 | 96001-06025-00 | BOLT, FLANGE, SH. 6 X 25 | 4 |
