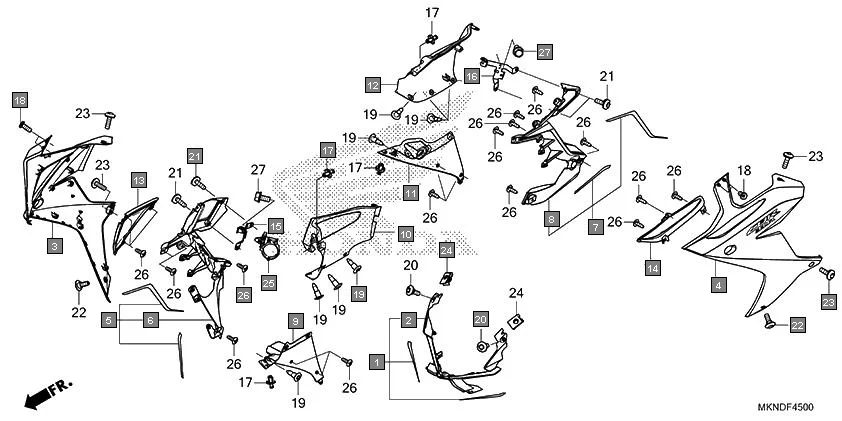

F-45 - MIDDLE COWL
HONDA CBR650R CBR650RAL · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 64190-MKN-D10ZA | COWL SET, FR. LOWER(WL) *TYPE1* | 1 | |
| 2 | 64191-MKN-D10 | COVER, FR. LOWER(WOL) | 1 | |
| 3 | 64210-MKN-D30ZA | COWL SET A, R. MIDDLE(WL) *TYPE1* | 1 | |
| 3 | 64210-MKN-D10ZA | COWL SET A, R. MIDDLE(WL) *TYPE1* | 1 | |
| 4 | 64220-MKN-D30ZA | COWL SET A, L. MIDDLE(WL) *TYPE1* | 1 | |
| 4 | 64220-MKN-D10ZA | COWL SET A, L. MIDDLE(WL) *TYPE1* | 1 | |
| 5 | 64230-MKN-D10ZA | COWL SET B, R. MIDDLE(WL) *TYPE1* | 1 | |
| 6 | 64232-MKN-D10 | COWL B, R. MIDDLE(WOL) | 1 | |
| 7 | 64240-MKN-D10ZA | COWL SET B, L. MIDDLE(WL) *TYPE1* | 1 | |
| 8 | 64242-MKN-D10 | COWL B, L. MIDDLE(WOL) | 1 | |
| 9 | 64251-MKN-D10 | PANEL, R. INNER MIDDLE | 1 | |
| 10 | 64256-MKN-D10 | PANEL, R. INNER UPPER | 1 | |
| 11 | 64261-MKN-D10 | PANEL, L, INNER MIDDLE | 1 | |
| 12 | 64266-MKN-D10 | PANEL, L. INNER UPPER | 1 | |
| 13 | 64271-MKN-D10 | COVER, R. AIR DUCT | 1 | |
| 14 | 64281-MKN-D10 | COVER, L. AIR DUCT | 1 | |
| 15 | 64650-MKN-D10 | STAY, R. MIDDLE COWL | 1 | |
| 16 | 64660-MKN-D10 | STAY, L. MIDDLE COWL | 1 | |
| 17 | 90116-K0A-E11 | RIVET, PUSH, 6MM | 4 | |
| 18 | 90116-MKF-D40 | BOLT, SPECIAL, 5X16 | 4 | |
| 19 | 90116-SP0-003 | CLIP, BUMPER SEAL | 8 | |
| 20 | 90124-MKN-D50 | SCREW, SPECIAL, 5X14 | 2 | |
| 21 | 90133-MKN-D50 | SCREW, PAN, 5X16 | 4 | |
| 22 | 90134-KPP-T00 | SCREW, PAN, 5X14 | 2 | |
| 23 | 90134-MJE-D00 | SCREW, PAN, 5X16 | 4 | |
| 24 | 90677-KAN-T00 | NUT, CLIP, 5MM | 2 | |
| 25 | 91556-HL1-A00 | CLIP, WATER HOSE | 1 | |
| 26 | 93903-24380 | SCREW TAPPING, 4 X 12 | 22 | |
| 27 | 95701-06012-07 | BOLT, FLANGE, 6X12 | 2 | |
