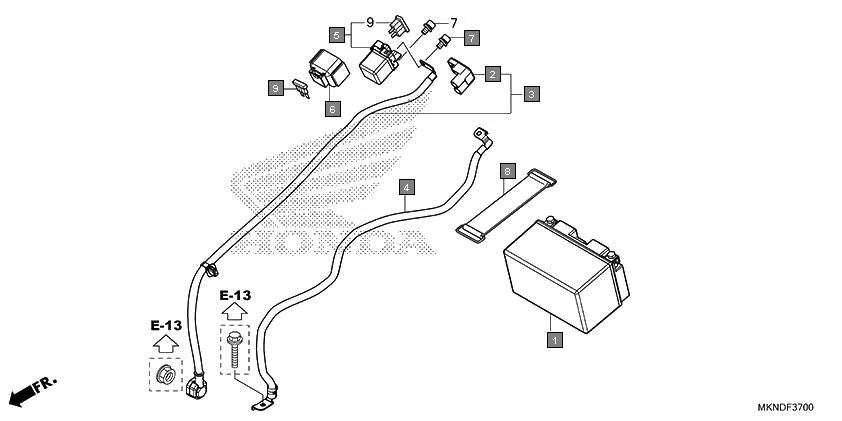

F-37 - BATTERY
HONDA CBR650R CBR650RAL · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-MGZ-A01 | BATTERY(FTZ10S)(FURUKAWA) | 1 | |
| 2 | 32406-MT4-010 | COVER, STARTER MAGNETIC TERMINAL | 1 | |
| 3 | 32410-MKN-D10 | CABLE, STARTER MOTOR | 1 | |
| 4 | 32601-MKN-D10 | CABLE, BATTERY EARTH | 1 | |
| 5 | 35850-MR5-007 | SWITCH ASSY., STARTER MAGNETIC | 1 | |
| 6 | 35856-KBH-000 | RUBBER, SHOCK | 1 | |
| 7 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 8 | 95012-13001 | BAND B2, BATTERY(120MM) | 1 | |
| 9 | 98200-33000 | FUSE, BLADE(30A) | 2 | |
