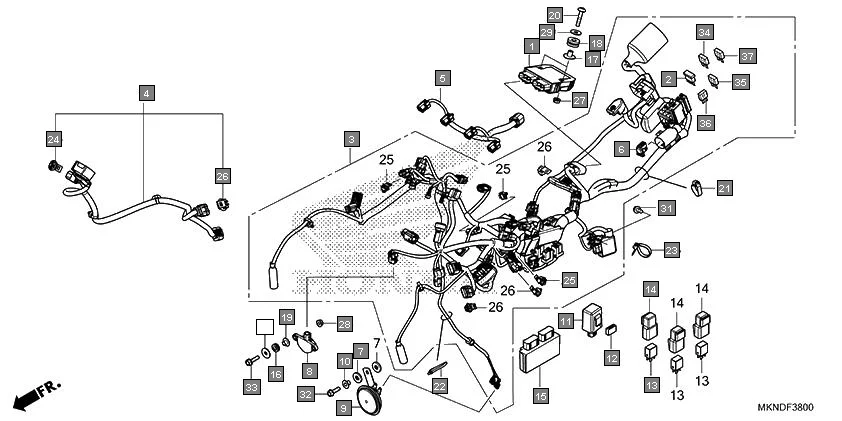

F-38 - WIRE HARNESS
HONDA CBR650R CBR650RAL · 37 parts
Parts in This Assembly (37)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31600-MKN-D51 | RECTIFIER ASSY., REGULATOR | 1 | |
| 2 | 31730-MAS-601 | DIODE ASSY., THREE WAY (SUMITOMO) | 1 | |
| 3 | 32100-MKN-D10 | HARNESS, WIRE | 1 | |
| 4 | 32103-MKN-D10 | SUB HARNESS, FR. | 1 | |
| 5 | 32104-MJE-D00 | SUB HARNESS, INJECTOR | 1 | |
| 6 | 32606-GEV-761 | CAP, DUMMY(4P)(RED) | 1 | |
| 7 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 8 | 35160-MGS-D31 | SENSOR ASSY., BANK ANGLE | 1 | |
| 9 | 38100-MJE-S10 | HORN ASSY. | 1 | |
| 10 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 11 | 38301-MKJ-D01 | RELAY COMP., WINKER(LED) | 1 | |
| 12 | 38306-KK4-000 | SUSP WINKER RELAY | 1 | |
| 13 | 38501-MCS-G01 | RELAY COMP., POWER (MICRO ISO 4P) | 3 | |
| 14 | 38506-MCS-G00 | SUSPENSION, POWER RELAY | 3 | |
| 15 | 38770-MKN-S11 | PGM-FI UNIT | 1 | |
| 16 | 64535-MFJ-D00 | RUBBER, SIDE COVER | 2 | |
| 17 | 77326-MJS-J70 | COLLAR, PILLION SEAT MOUNTING | 2 | |
| 18 | 77327-MJS-J70 | RUBBER, PILLION SEAT MOUNTING | 2 | |
| 19 | 90129-MGZ-J00 | COLLAR, BANK ANGLE SENSOR | 2 | |
| 20 | 90130-MJE-D40 | SCREW, PAN, 6X32 | 2 | |
| 21 | 90650-KV6-003 | BAND, WIRE, 95MM | 1 | |
| 22 | 90651-KV6-003 | BAND WIRE | 1 | |
| 23 | 90652-KT1-771 | BAND, WIRE | 1 | |
| 24 | 91535-STK-003 | CLIP, COUPLER(DARK BLUE) | 1 | |
| 25 | 91535-TA0-003 | CLIP, COUPLER(DARK BROWN) | 3 | |
| 26 | 91565-SEL-003 | CLIP, COUPLER(BLACK) | 4 | |
| 27 | 94050-06070 | NUT, FLANGE 6 MM | 2 | |
| 28 | 94050-06080 | NUT, FLANGE, 6MM | 2 | |
| 29 | 94103-06700 | WASHER, PLAIN, 6 MM | 2 | |
| 30 | 94103-06800 | WASHER, PLAIN 6 MM | 2 | |
| 31 | 95701-06010-08 | BOLT, FLANGE, 6X10 | 1 | |
| 32 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
| 33 | 95701-06022-08 | BOLT, FLANGE, 6X22 | 2 | |
| 34 | 98200-40750 | FUSE, MINI(7.5A) | 7 | |
| 35 | 98200-41000 | FUSE, MINI(10A) | 3 | |
| 36 | 98200-42000 | FUSE, MINI(20A) | 2 | |
| 37 | 98200-43000 | FUSE, MINI(30A) | 3 | |
