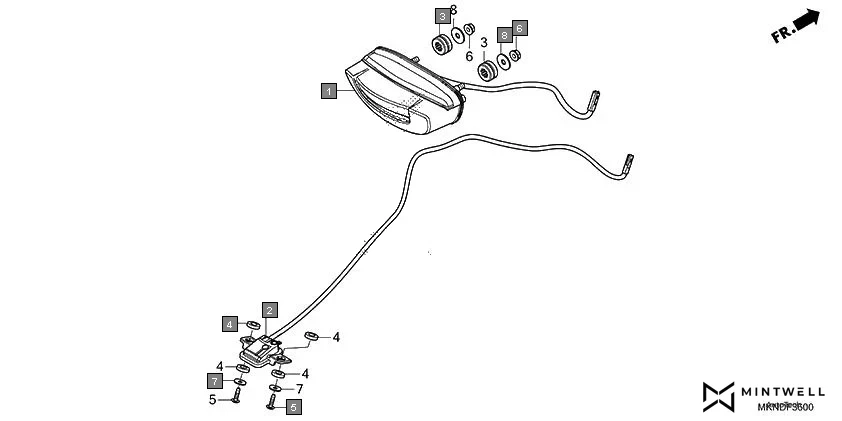

F-36 - TAILLIGHT/LICENSE LIGHT
HONDA CBR650R CBR650RAL · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33701-MKN-D51 | TAILLIGHT UNIT | 1 | |
| 2 | 33720-MKN-D51 | LIGHT ASSY., LICENSE | 1 | |
| 3 | 84703-425-000 | RUBBER TAIL LIGHT (MOUNT) | 2 | |
| 4 | 90514-K33-D00 | WASHER, RUBBER(6MM) | 4 | |
| 5 | 93903-24480 | SCREW, TAPPING, 4X16 | 2 | |
| 6 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 7 | 94103-04700 | WASHER, PLAIN, 4MM | 2 | |
| 8 | 94103-06000 | WASHER PLAIN,6MM | 2 | |
