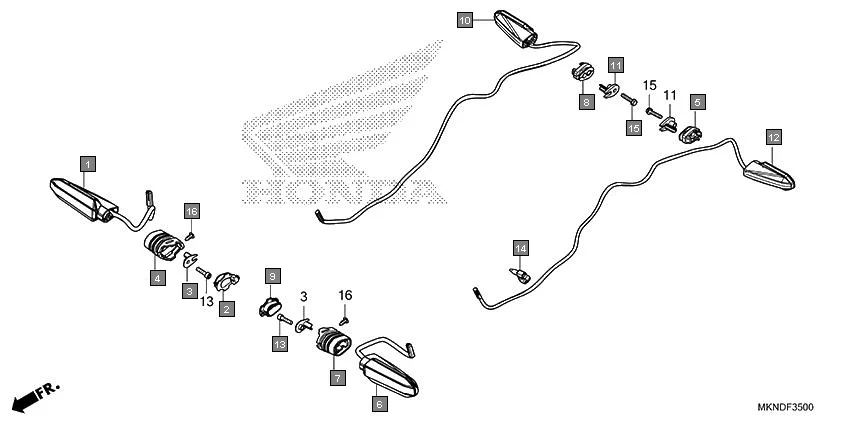

F-35 - WINKER
HONDA CBR650R CBR650RAL · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-MKN-D11 | WINKER ASSY., R. FR. | 1 | |
| 2 | 33409-MKN-D10 | HOLDER, R. WINKER | 1 | |
| 3 | 33411-MKE-A50 | COLLAR, WINKER | 2 | |
| 4 | 33412-MKN-D10 | RUBBER, R. FR. WINKER MOUNTING | 1 | |
| 5 | 33412-MKN-D50 | RUBBER, R. WINKER MOUNTING (L. RR.) | 1 | |
| 6 | 33450-MKN-D11 | WINKER ASSY., L. FR. | 1 | |
| 7 | 33452-MKN-D10 | RUBBER, L. FR. WINKER MOUNTING | 1 | |
| 8 | 33452-MKN-D50 | RUBBER, L. WINKER MOUNTING (R. RR.) | 1 | |
| 9 | 33459-MKN-D10 | HOLDER, L. WINKER | 1 | |
| 10 | 33600-MKN-D51 | WINKER ASSY., R. RR. | 1 | |
| 11 | 33611-MKN-D50 | COLLAR, WINKER | 2 | |
| 12 | 33650-MKN-D51 | WINKER ASSY., L. RR. | 1 | |
| 13 | 90116-MGE-D00 | BOLT, SOCKET, 5X20 | 2 | |
| 14 | 90650-KV6-003 | BAND, WIRE, 95MM | 1 | |
| 15 | 93411-05025-00 | BOLT-WASHER, 5X25 | 2 | |
| 16 | 93903-24380 | SCREW TAPPING, 4 X 12 | 2 | |
