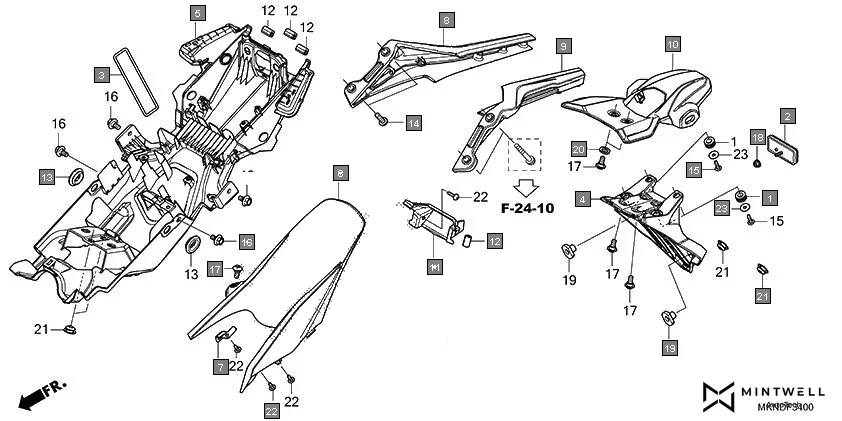

F-34-REAR FENDER
HONDACBR650R CBR650RAL · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19639-GBL-000 | RUBBER, MOUNTING | 4 | |
| 2 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 3 | 50290-MBL-610 | BAND, U-LOCK | 1 | |
| 4 | 80101-MKN-S10 | FENDER A, RR. | 1 | |
| 5 | 80102-MKN-D50 | FENDER B, RR. | 1 | |
| 6 | 80103-MKN-D50 | FENDER C, RR. | 1 | |
| 7 | 80106-MKN-D50 | STAY, RR. FENDER C | 1 | |
| 8 | 80131-MKN-D50 | STAY, R. RR. FENDER | 1 | |
| 9 | 80132-MKN-D50 | STAY, L. RR. FENDER | 1 | |
| 10 | 80141-MKN-D50 | COVER, LICENSE LIGHT | 1 | |
| 11 | 80150-MKN-D50ZA | COVER SET, RR. FENDER STAY(WL) *TYPE1* | 1 | |
| 12 | 83515-KPH-700 | RUBBER, TAIL COVER | 4 | |
| 13 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 14 | 90105-MKN-D50 | BOLT, SOCKET, 8X28 | 2 | |
| 15 | 90112-MKA-D80 | SCREW, TAPPING, 4X16 | 4 | |
| 16 | 90116-ME9-000 | BOLT,FLANGE, 6MM | 4 | |
| 17 | 90127-MKN-D50 | SCREW, SPECIAL, 6X14 | 7 | |
| 18 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 1 | |
| 19 | 90311-KTE-910 | NUT REAR FENDER | 2 | |
| 20 | 90514-K33-D00 | WASHER, RUBBER(6MM) | 2 | |
| 21 | 90852-KPP-T00 | PLUG, HOLE | 4 | |
| 22 | 93903-24380 | SCREW TAPPING, 4 X 12 | 4 | |
| 23 | 94103-04700 | WASHER, PLAIN, 4MM | 4 |
