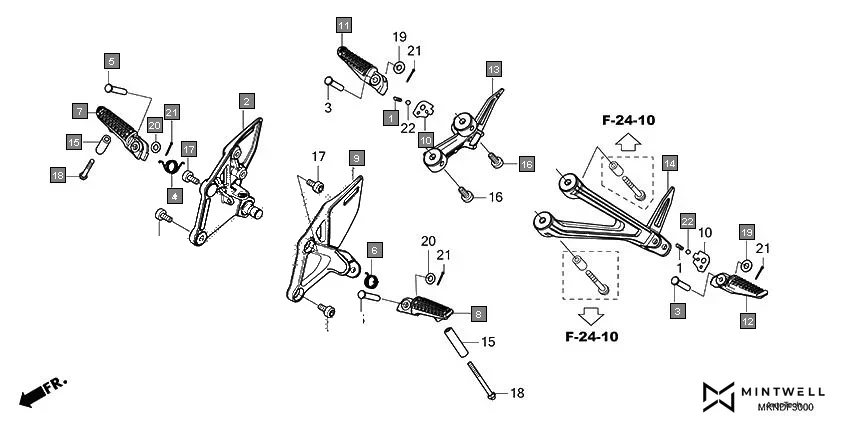

F-30-STEP
HONDACBR650R CBR650RAL · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 28333-300-000 | SPRING KICK STARTER STOPPER | 2 | |
| 2 | 50600-MKN-D50 | HOLDER, R. MAIN STEP | 1 | |
| 3 | 50603-033-010 | PIN, STEP BAR JOINT | 2 | |
| 4 | 50617-445-840 | SPG. R STEP RETURN | 1 | |
| 5 | 50639-ML0-010 | PIN, STEP BAR | 2 | |
| 6 | 50644-445-840 | SPG. L STEP RETURN | 1 | |
| 7 | 50660-MKN-D50 | ARM, R. MAIN STEP | 1 | |
| 8 | 50665-MKN-D50 | ARM, L. MAIN STEP | 1 | |
| 9 | 50700-MKN-D50 | HOLDER, L. MAIN STEP | 1 | |
| 10 | 50718-MN8-000 | PLATE, PILLION STEP CLICK | 2 | |
| 11 | 50720-K94-T00 | ARM, R. PILLION STEP | 1 | |
| 12 | 50730-K94-T00 | ARM, L. PILLION STEP | 1 | |
| 13 | 50750-MKN-D50 | HOLDER, R. PILLION STEP | 1 | |
| 14 | 50760-MKN-D50 | HOLDER, L. PILLION STEP | 1 | |
| 15 | 51486-MKN-D50 | COLLAR, STEP LOWER | 2 | |
| 16 | 90116-MGZ-J00 | BOLT, SOCKET, 8X22 | 2 | |
| 17 | 90116-MJE-D00 | BOLT, SOCKET, 8X18 | 4 | |
| 18 | 92501-06060-0A | BOLT, HEX. CAP, 6X60 | 2 | |
| 19 | 94101-08000 | WASHER, PLAIN, 8MM | 2 | |
| 20 | 94102-08800 | WASHER, PLAIN, 8MM | 2 | |
| 21 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 4 | |
| 22 | 96211-08000 | BALL STEEL 8 MM | 2 |
