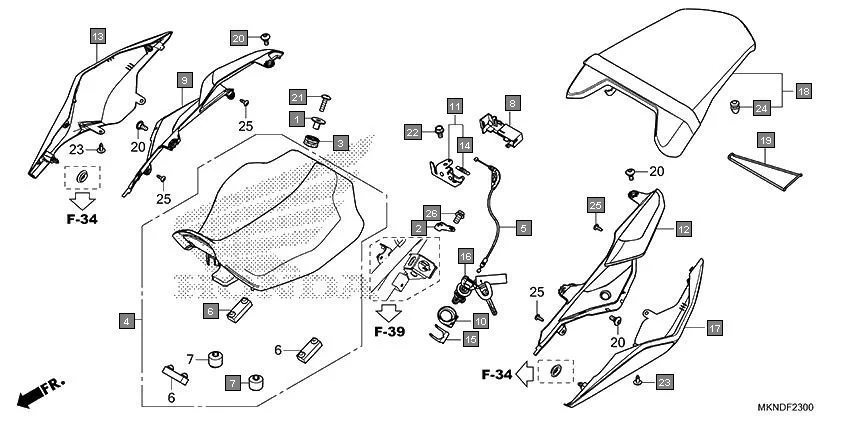

F-23 - SEAT/REAR COWL
HONDA CBR650R CBR650RAL · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33706-KAN-960 | COLLAR, TAILLIGHT MOUNTING | 2 | |
| 2 | 50201-MKN-D50 | PLATE, KEY SETTING | 1 | |
| 3 | 61304-415-000 | RUBBER, HEADLIGHT CASE MOUNTING | 2 | |
| 4 | 77100-MKN-D51ZB | SEAT ASSY., MAIN *TYPE1* | 1 | |
| 5 | 77156-MKN-D51 | CABLE COMP., SEAT LOCK | 1 | |
| 6 | 77205-286-000 | RUBBER `B SEAT SETTING | 3 | |
| 7 | 77206-MJE-DB0 | RUBBER, SEAT CUSHION | 2 | |
| 8 | 77210-MKN-D50 | COVER, SEAT LOCK | 1 | |
| 9 | 77216-MKN-D50 | COWL B, R. RR. | 1 | |
| 10 | 77217-MKN-D50 | COVER, KEY SETTING | 1 | |
| 11 | 77220-MJE-D00 | LOCK COMP., SEAT | 1 | |
| 12 | 77226-MKN-D50 | COWL B, L. RR. | 1 | |
| 13 | 77230-MKN-D30ZA | COWL SET A, R. RR.(WL) *TYPE1* | 1 | |
| 13 | 77230-MKN-D10ZA | COWL SET A, R. RR.(WL) *TYPE1* | 1 | |
| 14 | 77234-GN2-000 | SPRING, SEAT LOCK | 1 | |
| 15 | 77235-MJE-D00 | PLATE, LOCK KEY SETTING | 1 | |
| 16 | 77239-MJE-D03 | KEY, SEAT LOCK(WAVE) | 1 | |
| 17 | 77240-MKN-D30ZA | COWL SET A, L. RR.(WL) *TYPE1* | 1 | |
| 17 | 77240-MKN-D10ZA | COWL SET A, L. RR.(WL) *TYPE1* | 1 | |
| 18 | 77300-MKN-D51ZB | SEAT ASSY., PILLION *TYPE1* | 1 | |
| 19 | 80123-GN5-900 | BAND, TOOL | 1 | |
| 20 | 90127-MKN-D50 | SCREW, SPECIAL, 6X14 | 4 | |
| 21 | 90128-MKN-D50 | SCREW, PAN, 6X22 | 2 | |
| 22 | 90129-MKN-D50 | BOLT, FLANGE, 6X12 | 1 | |
| 23 | 90683-GR1-003 | CLIP, BODY COVER | 2 | |
| 24 | 90899-422-610 | PLUG, CONE TYPE | 1 | |
| 25 | 93903-24380 | SCREW TAPPING, 4 X 12 | 4 | |
