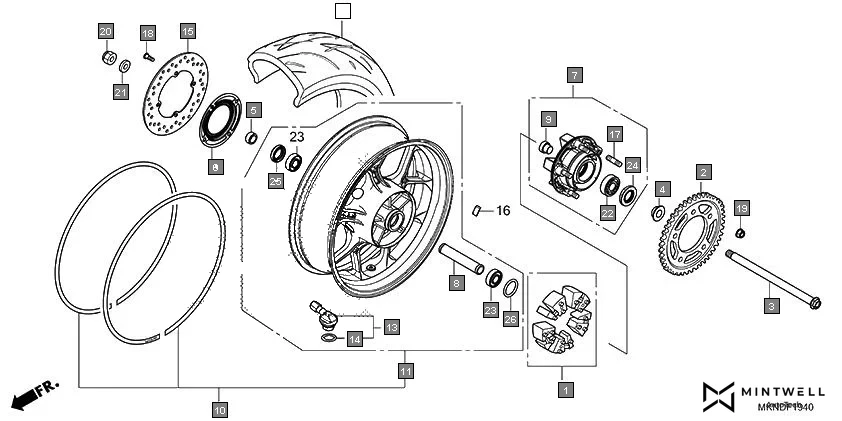

F-19-40 - REAR WHEEL
HONDA CBR650R CBR650RAL · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-MGS-D30 | DAMPER SET, WHEEL | 1 | |
| 2 | 41201-MKN-D50 | SPROCKET, FINAL DRIVEN(42T) | 1 | |
| 3 | 42301-MKN-D50 | AXLE, RR. WHEEL | 1 | |
| 4 | 42311-MER-D00 | COLLAR, L. RR. WHEEL SIDE | 1 | |
| 5 | 42312-MER-D00 | COLLAR, RR. BRAKE SIDE | 1 | |
| 6 | 42515-MKN-D50 | RING, RR. PULSER | 1 | |
| 7 | 42615-MJE-D00 | FLANGE SUB ASSY., RR. DRIVEN | 1 | |
| 8 | 42620-MKN-D50 | COLLAR, RR. AXLE DISTANCE | 1 | |
| 9 | 42625-MER-D00 | COLLAR B, RR. WHEEL DISTANCE | 1 | |
| 10 | 42650-MKN-D30ZA | WHEEL SUB ASSY., RR.(WL) *TYPE1* | 1 | |
| 11 | 42650-MKN-D50ZB | WHEEL SUB ASSY., RR. *TYPE1* | 1 | |
| 12 | 42711-MKN-D52 | TIRE, RR.(DUNLOP) (180/55ZR17M/C 73W) | 1 | |
| 13 | 42755-MKA-D81 | VALVE ASSY., CLAMP IN | 1 | |
| 14 | 42758-MKA-D81 | O-RING | 1 | |
| 15 | 43251-K87-A00 | DISK, RR. BRAKE | 1 | |
| 17 | 90102-MAS-000 | BOLT, STUD, 12X25 | 5 | |
| 18 | 90105-MGS-D30 | BOLT, DISK, 8X25 | 4 | |
| 19 | 90306-KGH-901 | NUT, U, 12MM(FUJI SEIMITSU) | 5 | |
| 20 | 90306-MJE-D01 | NUT, U, 18MM | 1 | |
| 21 | 90401-KZ4-890 | WASHER, 18X32X2 | 1 | |
| 22 | 91051-MAS-003 | BEARING, RADIAL BALL, 63/22 | 1 | |
| 23 | 91053-MGS-D31 | BEARING, RADIAL BALL(6204)(UU) | 2 | |
| 24 | 91252-MAS-003 | DUST SEAL, 30X56X7.5 | 1 | |
| 25 | 91253-MAE-003 | DUST SEAL, 30X47X7.5 | 1 | |
| 26 | 91351-MGS-D30 | O-RING, 55X2 | 1 | |
