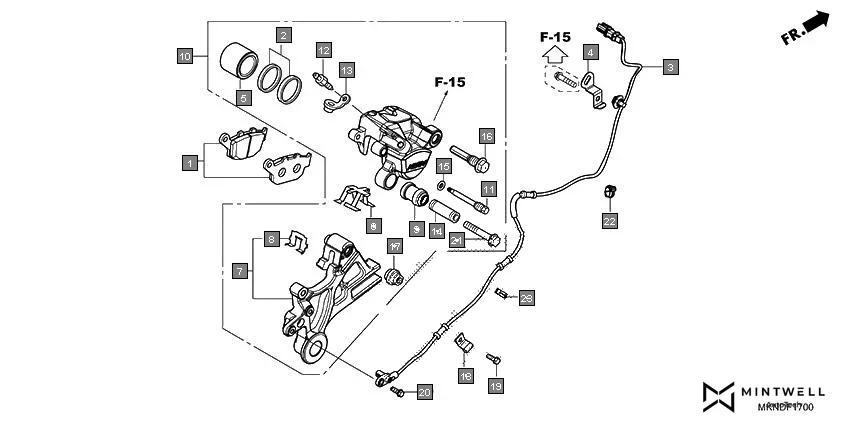

F-17 - REAR BRAKE CALIPER
HONDA CBR650R CBR650RAL · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06435-MGZ-J01 | PAD SET, RR. | 1 | |
| 2 | 06451-443-405 | SEAL SET, PISTON | 1 | |
| 3 | 38510-MKN-D51 | SENSOR, RR. WHEEL SPEED | 1 | |
| 4 | 38515-MJE-D10 | STAY, RR. SENSOR CORD | 1 | |
| 5 | 43107-KT7-761 | PISTON | 1 | |
| 6 | 43108-MBB-006 | SPRING, PAD | 1 | |
| 7 | 43110-MJE-DB1 | BRACKET COMP., RR. BRAKE (NISSIN) | 1 | |
| 8 | 43112-KT7-761 | RETAINER | 1 | |
| 9 | 43132-KT7-761 | BOOT, SLEEVE | 1 | |
| 10 | 43150-MJE-DB1 | CALIPER SUB ASSY., RR. BRAKE (NISSIN) | 1 | |
| 11 | 43215-KZ4-J41 | PIN, HANGER | 1 | |
| 12 | 43352-568-003 | SCREW, BLEEDER(NISSIN) | 1 | |
| 13 | 43353-461-771 | CAP, BLEEDER | 1 | |
| 14 | 45111-MA3-006 | SLEEVE | 1 | |
| 15 | 45111-MAJ-G41 | STOPPER RING | 1 | |
| 16 | 45131-MN9-006 | BOLT, PIN | 1 | |
| 17 | 45133-MA3-006 | BOOT B | 1 | |
| 18 | 45157-MKH-D00 | CLAMPER A, SENSOR CORD | 1 | |
| 19 | 90013-GHB-610 | BOLT, FLANGE, 6X12 | 1 | |
| 20 | 90111-MKN-D50 | BOLT, FLANGE, 6X16 | 1 | |
| 21 | 90180-MN8-006 | BOLT, FLANGE, 8X49 | 1 | |
| 22 | 90690-MCA-003 | CLIP, CABLE, 14MM | 1 | |
| 23 | 90690-MJE-D11 | CLIP, CABLE, 10MM | 1 | |
