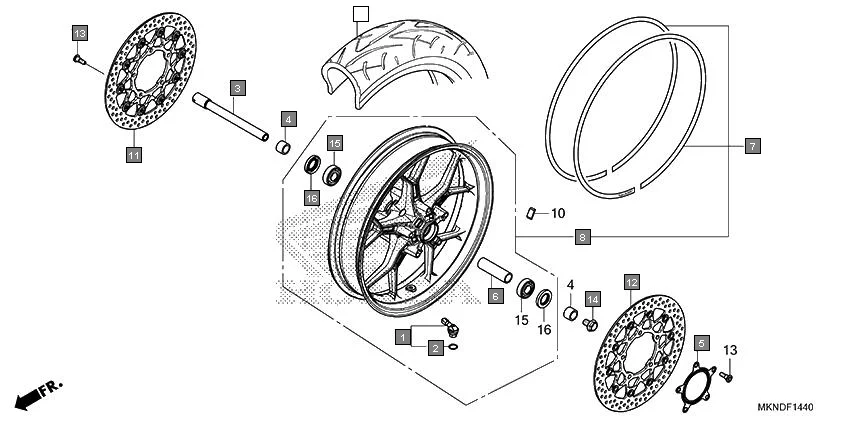

F-14-40 - FRONT WHEEL
HONDA CBR650R CBR650RAL · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42755-MKA-D81 | VALVE ASSY., CLAMP IN | 1 | |
| 2 | 42758-MKA-D81 | O-RING | 1 | |
| 3 | 44301-MKN-D50 | AXLE, FR. WHEEL | 1 | |
| 4 | 44311-MGH-640 | COLLAR, R. FR. WHEEL SIDE (BOTH SIDES) | 2 | |
| 5 | 44515-MKN-D50 | RING, FR. PULSER | 1 | |
| 6 | 44620-MJE-D00 | COLLAR, FR. AXLE DISTANCE | 1 | |
| 7 | 44650-MKN-D30ZA | WHEEL SUB ASSY., FR.(WL) *TYPE1* | 1 | |
| 8 | 44650-MKN-D50ZB | WHEEL SUB ASSY., FR. *TYPE1* | 1 | |
| 9 | 44711-MKN-D52 | TIRE, FR.(DUNLOP) (120/70ZR17M/C 58W) | 1 | |
| 11 | 45120-MKN-D51 | DISK COMP., R. FR. BRAKE | 1 | |
| 12 | 45220-MKN-D51 | DISK COMP., L. FR. BRAKE | 1 | |
| 13 | 90105-MGS-D30 | BOLT, DISK, 8X25 | 10 | |
| 14 | 90112-MKN-D50 | BOLT, FR. AXLE | 1 | |
| 15 | 91053-MGS-D31 | BEARING, RADIAL BALL(6204)(UU) | 2 | |
| 16 | 91252-MC4-013 | OIL SEAL, 28X47.2X7(ARAI) | 2 | |
