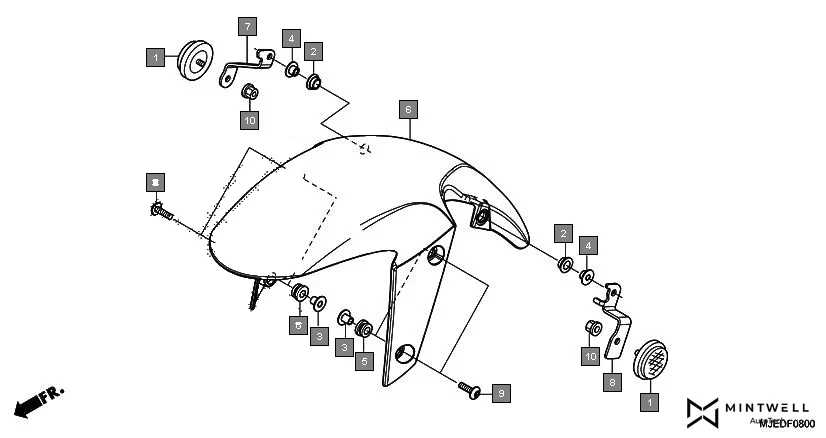

F-8 - FRONT FENDER
HONDA CBR650F CBR650FAG · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KTE-601 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 61103-KPF-910 | RUBBER, FR. FENDER MOUNTING | 2 | |
| 3 | 61103-KRY-900 | COLLAR, A FR.FENDER | 4 | |
| 4 | 61105-KPF-910 | COLLAR, FR. FENDER MOUNTING | 2 | |
| 5 | 61105-KRY-900 | RUBBER, FR.FENDER MTG. | 4 | |
| 6 | 61110-MJE-D10ZH | FENDER SET, FR.(WL) *TYPE5* | 1 | |
| 7 | 61115-MJE-A00 | STAY, R. FR. REFLECTOR | 1 | |
| 8 | 61116-MJE-A00 | STAY, L. FR. REFLECTOR | 1 | |
| 9 | 90130-KYJ-900 | SCREW, PAN, 6X22 | 4 | |
| 10 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
