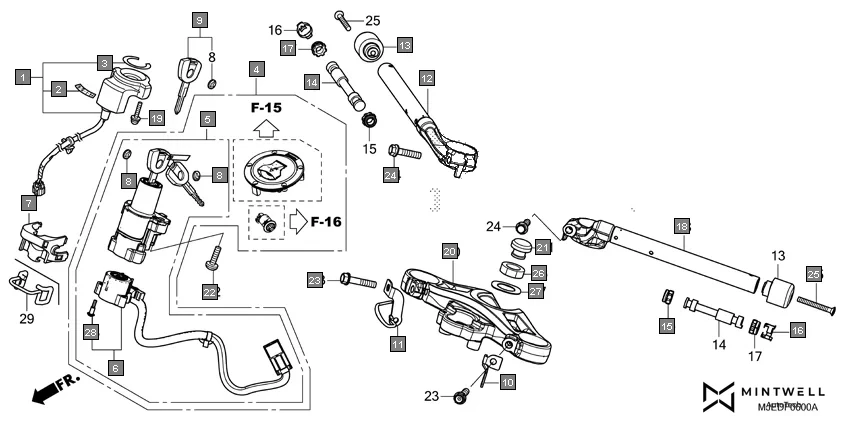

F-6 - HANDLE PIPE/TOP BRIDGE
HONDA CBR650F CBR650FAG · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30430-MJE-D01 | RECEIVER UNIT | 1 | |
| 2 | 30432-MBW-E02 | MARK, RECEIVER(HONDA LOCK) | 1 | |
| 3 | 30433-MBW-602 | SEAL, IGNITION SWITCH | 1 | |
| 4 | 35010-MJE-D02 | KEY SET | 1 | |
| 5 | 35100-MJE-D02 | SWITCH ASSY., COMBINATION | 1 | |
| 6 | 35101-MJE-D01 | BASE COMP., CONTACT | 1 | |
| 7 | 35105-MFJ-D01 | GUIDE, CORD | 1 | |
| 8 | 35113-MJE-D00 | EMBLEM, KEY | 4 | |
| 9 | 35121-MJE-D02 | KEY, BLANK | 1 | |
| 10 | 35910-MJE-D00 | GUIDE, L. FR. CORD | 1 | |
| 11 | 45157-MJE-D00 | CLAMPER C, FR. BRAKE HOSE | 1 | |
| 12 | 53100-MJE-D00 | PIPE COMP., R. STEERING HANDLE | 1 | |
| 13 | 53104-MGZ-J00 | WEIGHT, STEERING HANDLE | 2 | |
| 14 | 53105-MGZ-J00 | WEIGHT B, STEERING HANDLE | 2 | |
| 15 | 53107-MB6-630 | RUBBER, HANDLE WT. B | 2 | |
| 16 | 53108-MJ0-000 | SNAPRING, HNDL. WT | 2 | |
| 17 | 53109-MV4-000 | RUBBER B, HANDLE WEIGHT | 2 | |
| 18 | 53150-MJE-D00 | PIPE COMP., L. STEERING HANDLE | 1 | |
| 19 | 53192-MFL-000 | SCREW-WASHER, 5X25 | 2 | |
| 20 | 53230-MJE-D00 | BRIDGE, FORK TOP | 1 | |
| 21 | 53232-MJ4-670 | CAP, STEERING STEM NUT | 1 | |
| 22 | 90107-MBG-000 | BOLT, ONE-WAY, 8MM | 2 | |
| 24 | 90112-MGZ-J00 | BOLT, FLANGE, 8X35 | 2 | |
| 25 | 90191-KYJ-900 | SCREW, OVAL, 6X50 | 2 | |
| 26 | 90304-KGA-900 | NUT, STEERING STEM | 1 | |
| 27 | 90503-KGA-900 | WASHER, STEERING STEM | 1 | |
| 28 | 91059-KY2-711 | SCREW, TAPPING, 3X16 | 3 | |
