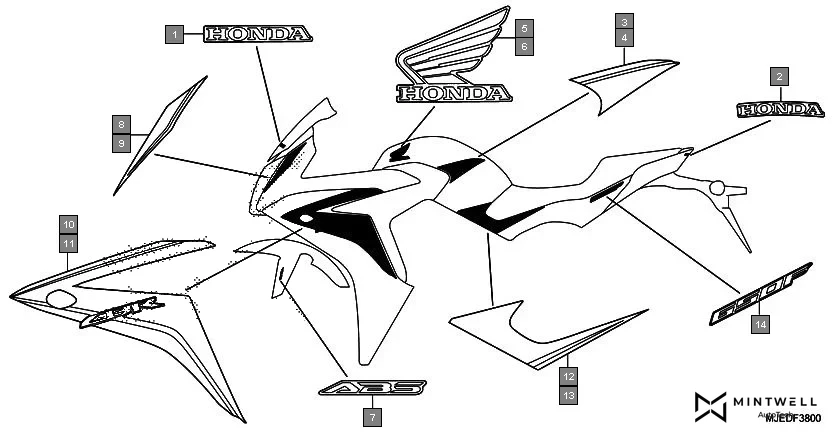

F-38 - MARK
HONDA CBR650F CBR650FAG · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-MJE-D00ZA | MARK, HONDA(80MM) *TYPE1* | 1 | |
| 2 | 86102-MJE-D00ZA | MARK, HONDA(70MM)*TYPE1* | 1 | |
| 3 | 86171-MJE-D20ZA | STRIPE, R. FUEL TANK*TYPE1* | 1 | |
| 4 | 86172-MJE-D20ZA | STRIPE, L. FUEL TANK *TYPE1* | 1 | |
| 5 | 86201-MJE-D20ZA | MARK, R. WING(100MM) *TYPE1* | 1 | |
| 6 | 86202-MJE-D20ZA | MARK, L. WING(100MM) *TYPE1* | 1 | |
| 7 | 86611-MGZ-D10ZB | MARK, ABS *TYPE2* (R. SIDE ONLY) | 1 | |
| 8 | 86641-MJE-D20ZA | STRIPE, R. UPPER COWL A *TYPE1* | 1 | |
| 9 | 86642-MJE-D20ZA | STRIPE, L. UPPER COWL A *TYPE1* | 1 | |
| 10 | 86643-MJE-D20ZA | STRIPE, R. MIDDLE COWL A *TYPE1* | 1 | |
| 11 | 86644-MJE-D20ZA | STRIPE, L. MIDDLE COWL A *TYPE1* | 1 | |
| 12 | 86831-MJE-D20ZA | STRIPE, R. SIDE COVER *TYPE1* | 1 | |
| 13 | 86832-MJE-D20ZA | STRIPE, L. SIDE COVER *TYPE1* | 1 | |
| 14 | 86833-MJE-D20ZA | MARK(650F) *TYPE1* | 2 | |
