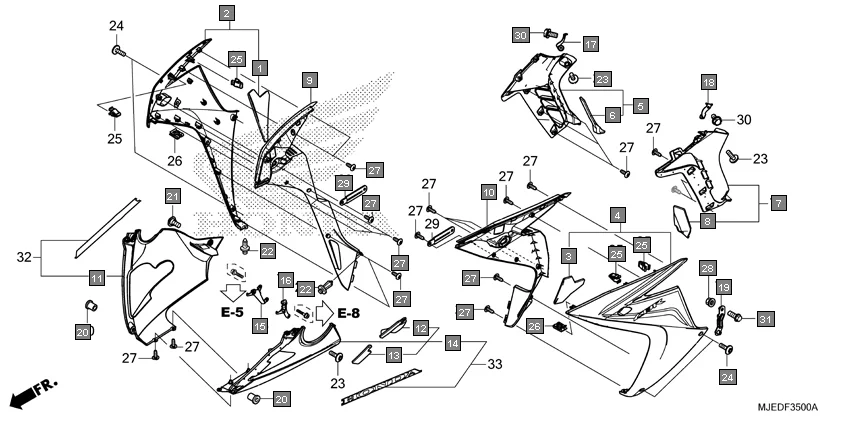

F-35 - LOWER COWL
HONDA CBR650F CBR650FAG · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 64213-MJE-D00 | MAT A, R. MIDDLE COWL | 1 | |
| 2 | 64215-MJE-D20ZA | COWL ASSY. A, R. MIDDLE(WL) *TYPE1* | 1 | |
| 3 | 64223-MJE-D00 | MAT A, L. MIDDLE COWL | 1 | |
| 4 | 64225-MJE-D20ZA | COWL ASSY. A, L. MIDDLE(WL) *TYPE1* | 1 | |
| 5 | 64230-MJE-D00 | COWL ASSY. B, R. MIDDLE | 1 | |
| 6 | 64232-MJE-D00 | MAT B, R. MIDDLE COWL | 1 | |
| 7 | 64240-MJE-D00 | COWL ASSY. B, L. MIDDLE | 1 | |
| 8 | 64242-MJE-D00 | MAT B, L. MIDDLE COWL | 1 | |
| 9 | 64251-MJE-D00 | PANEL, R. INNER | 1 | |
| 10 | 64261-MJE-D00 | PANEL, L. INNER | 1 | |
| 11 | 64270-MJE-D00ZB | COWL, R. UNDER *NH436M* MAT GUNPOWDER BLACK METALLIC | 1 | |
| 12 | 64282-MJE-D00 | MAT, L. UNDER COWL | 1 | |
| 13 | 64283-MJE-D00 | MAT B, L. UNDER COWL | 1 | |
| 14 | 64285-MJE-D00ZB | COWL ASSY., L. UNDER *NH436M* MAT GUNPOWDER BLACK METALLIC | 1 | |
| 15 | 64610-MJE-D00 | STAY, R. UNDER COWL | 1 | |
| 16 | 64620-MJE-D00 | STAY, L. UNDER COWL | 1 | |
| 17 | 64650-MJE-D00 | STAY B, R. MIDDLE | 1 | |
| 18 | 64660-MJE-D00 | STAY B, L. MIDDLE | 1 | |
| 19 | 64670-MJE-D00 | STAY, RR. UNDER COWL | 1 | |
| 20 | 90111-KW3-003 | NUT, COWL SETTING, 5MM | 2 | |
| 21 | 90115-MGZ-J00 | SCREW, SPECIAL, 6X14 | 1 | |
| 22 | 90116-MCS-G00 | RIVET, PUSH | 2 | |
| 23 | 90133-MJE-D00 | SCREW, PAN, 5X16 | 3 | |
| 24 | 90134-MJE-D00 | SCREW, PAN, 5X16 | 4 | |
| 25 | 90601-SJA-003 | CLIP, SNAP FITTING | 4 | |
| 26 | 90677-KAN-T00 | NUT, CLIP, 5MM | 2 | |
| 27 | 93903-24380 | SCREW TAPPING, 4 X 12 | 24 | |
| 28 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 29 | 94591-27000 | CLIP 2 X 70 | 2 | |
| 30 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 31 | 96001-06018-07 | BOLT FLANGE SH 6X18 | 1 | |
