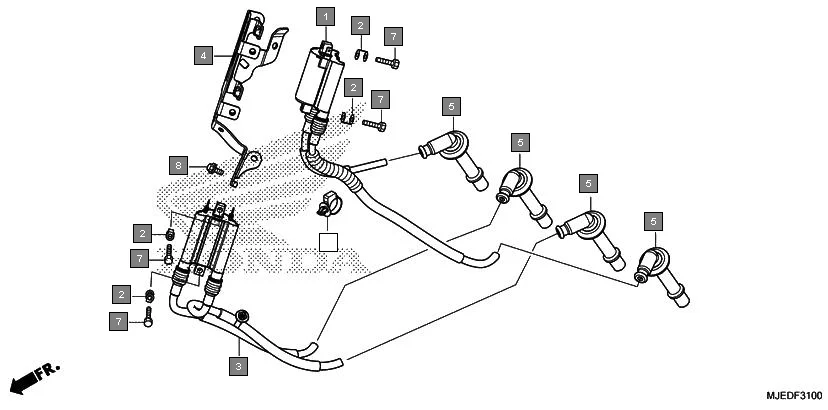

F-31 - IGNITION COIL
HONDA CBR650F CBR650FAG · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30511-MJE-D01 | COIL ASSY., IGNITION(1,4) | 1 | |
| 2 | 30520-GFM-900 | SPACER, IGNITION COIL | 4 | |
| 3 | 30521-MJE-D01 | COIL ASSY., IGNITION(2,3) | 1 | |
| 4 | 30550-MJE-D00 | STAY COMP., IGNITION COIL | 1 | |
| 5 | 30700-MBG-000 | CAP ASSY., NOISE SUPPRESSOR | 4 | |
| 6 | 90652-HC4-003 | CLAMP, HARNESS | 1 | |
| 7 | 92101-06020-4J | BOLT, HEX., 6 X 20 | 4 | |
| 8 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
