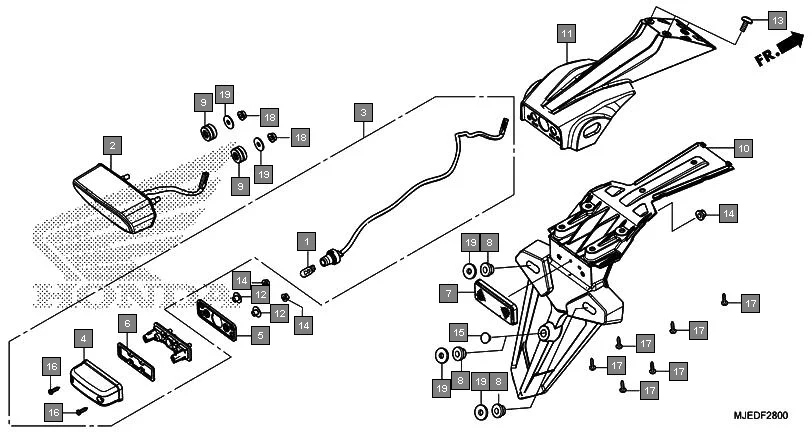

F-28 - TAILLIGHT
HONDA CBR650F CBR650FAG · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33301-SA0-741 | BULB(12V 5W)(STANLEY) | 1 | |
| 2 | 33701-MJE-D01 | TAILLIGHT UNIT | 1 | |
| 3 | 33720-MJE-D01 | LIGHT ASSY., LICENSE(12V 5W) | 1 | |
| 4 | 33722-KWN-901 | COVER COMP., LICENSE | 1 | |
| 5 | 33728-KPP-T00 | RUBBER, LICENSE LIGHT | 1 | |
| 6 | 33729-MCZ-003 | PACKING, LENS | 1 | |
| 7 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 8 | 44125-MN5-000 | COLLAR, FR. WHEEL COVER | 3 | |
| 9 | 77209-KAG-900 | RUBBER, SEAT STAY MOUNT | 2 | |
| 10 | 80101-MJE-A00 | FENDER A, RR. | 1 | |
| 11 | 80104-MJE-D00 | STAY, RR. FENDER | 1 | |
| 12 | 80105-K33-D00 | COLLAR, MOUNTING | 2 | |
| 13 | 90107-K26-900 | BOLT, SPECIAL, 6X16 | 3 | |
| 14 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 3 | |
| 15 | 90852-KPP-T00 | PLUG, HOLE | 1 | |
| 16 | 93901-24480 | SCREW, TAPPING, 4 X 16 | 2 | |
| 17 | 93903-25380 | SCREW TAPPING 5X16 | 6 | |
| 18 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 19 | 94103-06000 | WASHER PLAIN,6MM | 5 | |
