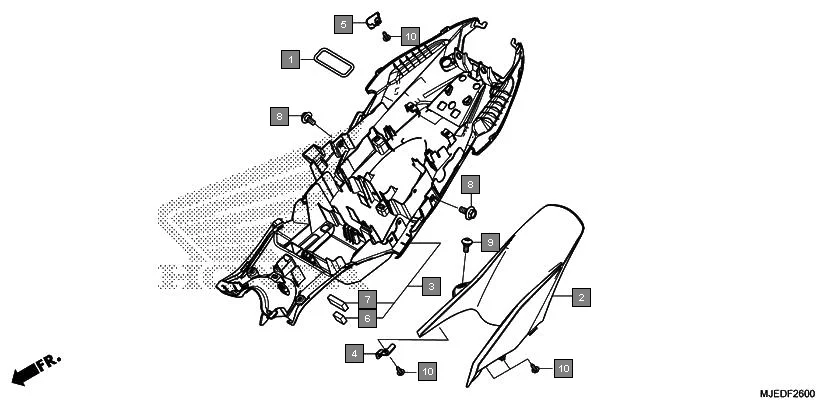

F-26 - REAR FENDER
HONDA CBR650F CBR650FAG · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50290-MBL-610 | BAND, U-LOCK | 1 | |
| 2 | 80103-MJE-D00 | FENDER C, RR. | 1 | |
| 3 | 80105-MJE-D00 | FENDER COMP. B, RR. | 1 | |
| 4 | 80106-MJE-D00 | STAY C, RR. FENDER | 1 | |
| 5 | 80107-MJE-D00 | COVER B, R. RR. FENDER | 1 | |
| 6 | 80109-MJE-D00 | RUBBER B, RR. FENDER SPONGE | 1 | |
| 7 | 83705-MT3-300 | RUBBER, SIDE COVER SPONGE | 1 | |
| 8 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 9 | 90115-MGZ-J00 | SCREW, SPECIAL, 6X14 | 1 | |
| 10 | 93903-24380 | SCREW TAPPING, 4 X 12 | 4 | |
