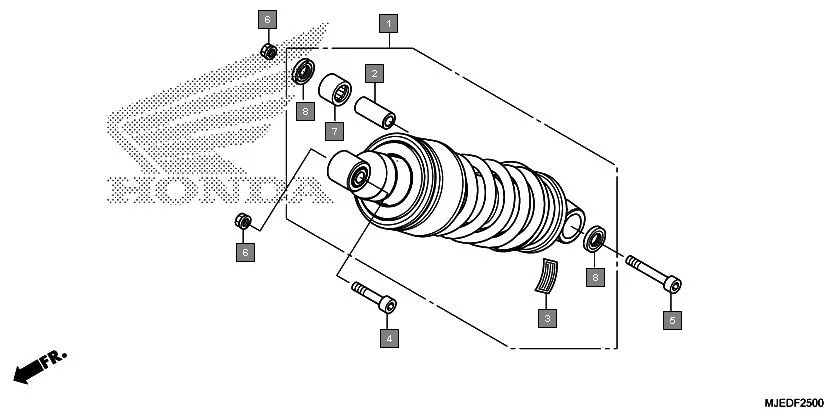

F-25 - REAR CUSHION
HONDA CBR650F CBR650FAG · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-MJE-A01 | CUSHION ASSY., RR.(SHOWA) | 1 | |
| 2 | 52463-MGZ-J00 | COLLAR, CUSHION CONNECTING ROD | 1 | |
| 3 | 87516-MBL-610 | LABEL, RR. DAMPER | 1 | |
| 4 | 90107-MJE-D00 | BOLT, SOCKET, 10X51 | 1 | |
| 5 | 90108-MJE-D00 | BOLT, SOCKET, 10X70 | 1 | |
| 6 | 90304-MJE-D01 | NUT, U, FLANGE, 10MM | 2 | |
| 7 | 91071-KV3-005 | BEARING, NEEDLE(KOYO) | 1 | |
| 8 | 91262-KV3-831 | DUST SEAL, 17X24X5(ARAI) | 2 | |
