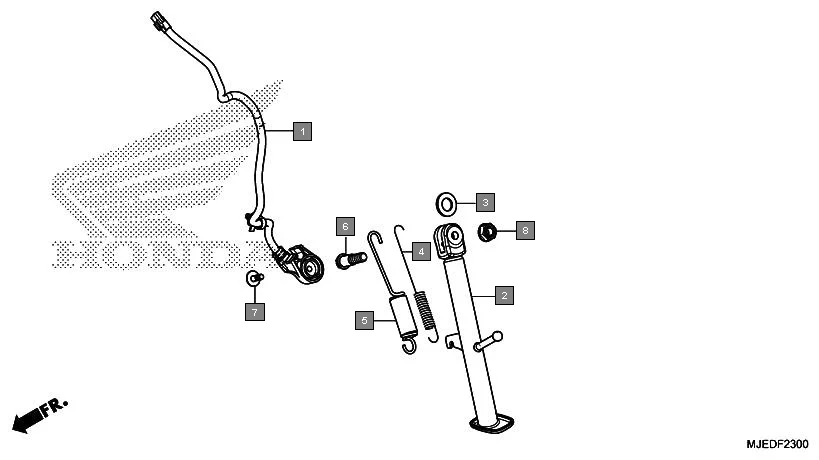

F-23 - SIDE STAND
HONDA CBR650F CBR650FAG · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35700-MJE-D01 | SWITCH ASSY., SIDE STAND | 1 | |
| 2 | 50530-MJE-D00 | BAR COMP., SIDE STAND | 1 | |
| 3 | 50539-MFJ-D00 | WASHER, 14.5X28 | 1 | |
| 4 | 50542-KCM-620 | SUB SPRING, SIDE STAND | 1 | |
| 5 | 50542-KPM-000 | SPRING ASSY., SIDE STAND | 1 | |
| 6 | 90108-KPP-860 | BOLT, SIDE STAND PIVOT | 1 | |
| 7 | 90132-KYJ-960 | BOLT, SPECIAL, 6X16 | 1 | |
| 8 | 90203-MF9-710 | NUT, SIDE STAND | 1 | |
