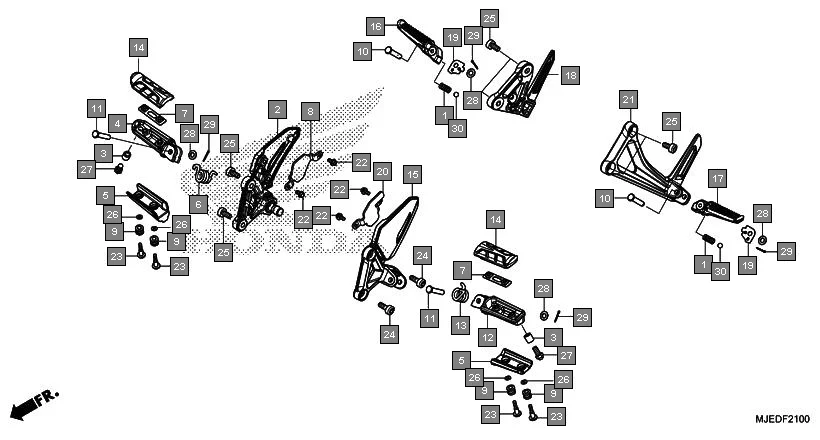

F-21 - STEP
HONDA CBR650F CBR650FAG · 30 parts
Parts in This Assembly (30)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 28333-300-000 | SPRING KICK STARTER STOPPER | 2 | |
| 2 | 50600-MJE-D00 | HOLDER, R. MAIN STEP | 1 | |
| 3 | 50611-MJE-D00 | COLLAR, 12.7X13 | 2 | |
| 4 | 50612-MJE-D00 | ARM, R. STEP | 1 | |
| 5 | 50615-MGZ-J00 | PLATE, STEP LOWER | 2 | |
| 6 | 50617-445-840 | SPG. R STEP RETURN | 1 | |
| 7 | 50619-MM5-000 | PLATE, STEP SETTING | 2 | |
| 8 | 50621-MJE-D00 | WEIGHT, R. STEP | 1 | |
| 9 | 50622-MBG-D00 | RUBBER, STEP LOWER PLATE | 4 | |
| 10 | 50639-MFL-D20 | PIN, STEP BAR | 2 | |
| 11 | 50639-ML0-010 | PIN, STEP BAR | 2 | |
| 12 | 50642-MJE-D00 | ARM, L. STEP | 1 | |
| 13 | 50644-445-840 | SPG. L STEP RETURN | 1 | |
| 14 | 50661-MJE-D00 | RUBBER, MAIN STEP | 2 | |
| 15 | 50700-MJE-D00 | HOLDER, L. MAIN STEP | 1 | |
| 16 | 50711-MGS-D30 | ARM, R. PILLION STEP | 1 | |
| 17 | 50712-MGS-D30 | ARM, L. PILLION STEP | 1 | |
| 18 | 50715-MJE-D00 | HOLDER, R. PILLION STEP | 1 | |
| 19 | 50718-MN8-000 | PLATE, PILLION STEP CLICK | 2 | |
| 20 | 50721-MJE-D00 | WEIGHT, L. STEP | 1 | |
| 21 | 50725-MJE-D00 | HOLDER, L. PILLION STEP | 1 | |
| 22 | 90002-892-000 | BOLT, FLANGE, 5X10 | 4 | |
| 23 | 90115-MBG-D00 | BOLT, STEP LOWER PLATE | 4 | |
| 24 | 90116-MGZ-J00 | BOLT, SOCKET, 8X22 | 2 | |
| 25 | 90116-MJE-D00 | BOLT, SOCKET, 8X18 | 6 | |
| 26 | 90483-MER-D00 | WASHER, PLAIN, 5MM | 4 | |
| 27 | 92501-08022-0A | BOLT, CAP, 8X22 | 2 | |
| 28 | 94102-08000 | WASHER, PLAIN, 8MM | 4 | |
| 29 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 4 | |
| 30 | 96211-08000 | BALL STEEL 8 MM | 2 | |
