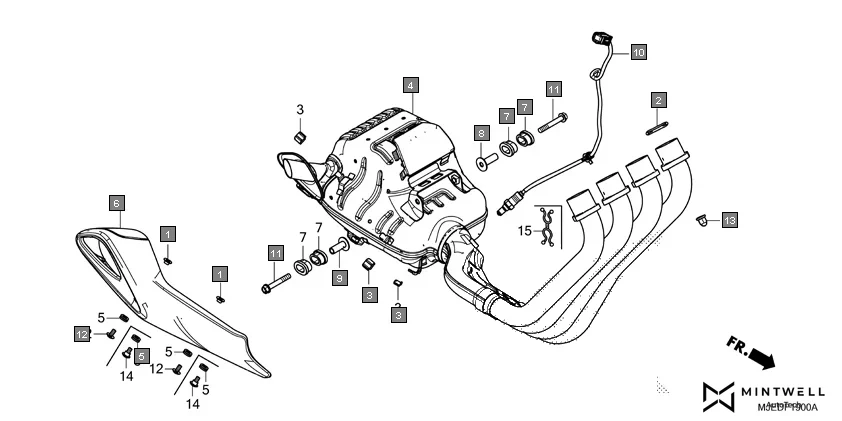

F-19 - EXHAUST MUFFLER
HONDA CBR650F CBR650FAG · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18185-MGV-D00 | COLLAR, MUFFLER MOUNTING | 2 | |
| 2 | 18291-MN4-920 | GASKET, EX. PIPE | 4 | |
| 3 | 18293-MCA-A20 | RUBBER, PROTECTOR PACKING | 3 | |
| 4 | 18300-MJE-D00 | MUFFLER COMP. | 1 | |
| 5 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 2 | |
| 6 | 18355-MJE-D00 | PROTECTOR, MUFFLER | 1 | |
| 7 | 18422-MGZ-J00 | RUBBER, EX. PIPE MOUNTING | 4 | |
| 8 | 18423-MJE-D00 | COLLAR, L. MUFFLER MOUNTING | 1 | |
| 9 | 18424-MJE-D00 | COLLAR, R. MUFFLER MOUNTING | 1 | |
| 10 | 36531-MJE-D01 | SENSOR, OXYGEN | 1 | |
| 11 | 90103-MJE-D00 | BOLT, FLANGE, 8X55 | 2 | |
| 12 | 90106-KRG-000 | SCREW, PAN, 6X12 | 2 | |
| 13 | 90304-KPH-700 | NUT, HEX. CAP, 8MM | 8 | |
