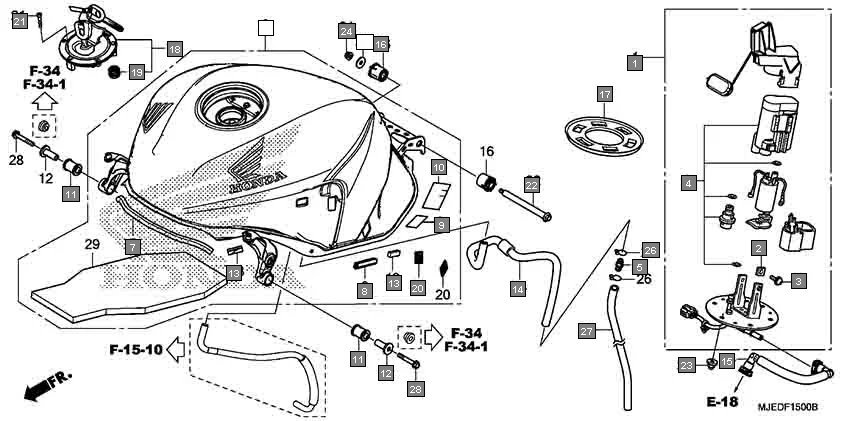

F-15 - FUEL TANK
HONDA CBR650F CBR650FAG · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16700-MJE-D02 | PUMP ASSY., FUEL | 1 | |
| 2 | 16711-MGS-D31 | STOPPER | 2 | |
| 3 | 16712-MGS-D31 | SCREW, 4X6.6 | 2 | |
| 4 | 16730-MKA-D82 | FILTER ASSY., FUEL | 1 | |
| 5 | 17359-419-670 | JOINT, BREATHER TUBE | 1 | |
| 6 | 17500-MJE-D20ZA | TANK ASSY., FUEL(WL) *TYPE1* | 1 | |
| 7 | 17515-MJE-D00 | TRIM, FUEL TANK | 1 | |
| 8 | 17516-MEE-D00 | TRIM, FUEL TANK | 2 | |
| 9 | 17521-KY1-300 | SEAL, TANK | 2 | |
| 10 | 17521-MJE-D00 | FILM, PROTECTOR | 1 | |
| 11 | 17534-MFJ-D00 | RUBBER, RR. TANK MOUNTING | 2 | |
| 12 | 17538-KZZ-900 | COLLAR | 2 | |
| 13 | 17540-MJE-D00 | FASTENER A, DUAL LOCK, 8X25 | 4 | |
| 14 | 17543-MJE-D00 | TUBE, DRAIN | 1 | |
| 15 | 17570-MJE-D01 | HOSE COMP., FUEL FEED | 1 | |
| 16 | 17572-MJE-D00 | CUSHION, RR. FUEL TANK | 2 | |
| 17 | 17574-MGS-D30 | PACKING, BASE | 1 | |
| 18 | 17620-MJE-D01 | CAP COMP., FUEL FILLER | 1 | |
| 19 | 17621-MGP-D61 | SEAL, BREATHER | 1 | |
| 20 | 64243-MEW-920 | FASTENER B, DUAL LOCK, 20X20 | 4 | |
| 21 | 90120-MJE-D00 | BOLT, SOCKET, 4X25(SUS) | 3 | |
| 22 | 90135-MJE-D00 | BOLT, HINGE, 10X102.4 | 1 | |
| 23 | 90201-415-000 | NUT, CAP, 6MM | 6 | |
| 24 | 90301-473-003 | NUT, U, 6MM(FUSERASHI) | 1 | |
| 25 | 94103-06800 | WASHER, PLAIN 6 MM | 1 | |
| 26 | 95002-02130 | CLIP B 12.5 TUBE | 2 | |
| 27 | 95005-80410-20 | TUBE, 8X410(95005-80001-20M) | 1 | |
| 28 | 95701-06040-00 | BOLT FLANGE 6X40 | 2 | |
