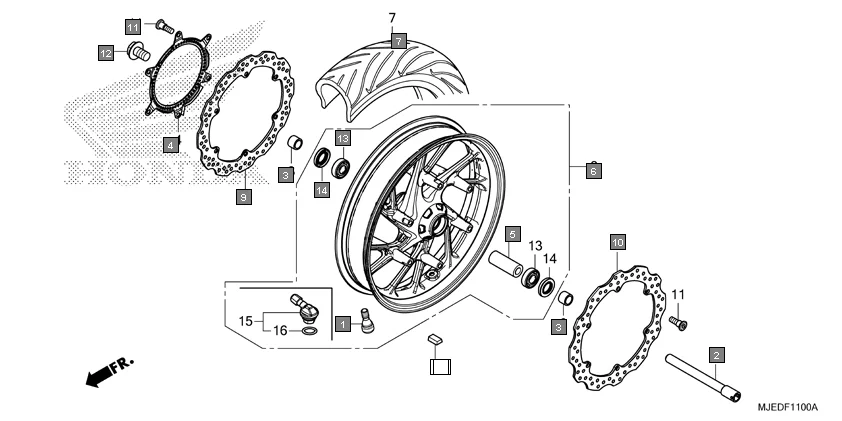

F-11 - FRONT WHEEL
HONDA CBR650F CBR650FAG · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42753-KWF-901 | VALVE, RIM(TRITON) | 1 | |
| 2 | 44301-MJE-D00 | AXLE, FR. WHEEL | 1 | |
| 3 | 44311-MGH-640 | COLLAR, R. FR. WHEEL SIDE (BOTH SIDES) | 2 | |
| 4 | 44515-MJE-D10 | RING, FR. PULSER | 1 | |
| 5 | 44620-MJE-D00 | COLLAR, FR. AXLE DISTANCE | 1 | |
| 6 | 44650-MJE-D01ZA | WHEEL SUB ASSY., FR. *TYPE1* | 1 | |
| 7 | 44711-MJE-D03 | TIRE, FR.(DUNLOP) (120/70ZR17 M/C 58W) | 1 | |
| 8 | 44721-SEA-N02 | WEIGHT, BALANCE(10G) (TOHO ZINC) | 1 | |
| 8 | 44722-SEA-N02 | WEIGHT, BALANCE(20G) (TOHO ZINC) | 1 | |
| 8 | 44723-SEA-N02 | WEIGHT, BALANCE(30G) (TOHO ZINC) | 1 | |
| 8 | 44726-SEA-N02 | WEIGHT, BALANCE(5G)(TOHO ZINC) | 1 | |
| 8 | 44727-SEA-N02 | WEIGHT, BALANCE(15G) (TOHO ZINC) | 1 | |
| 8 | 44728-SEA-N02 | WEIGHT, BALANCE(25G) (TOHO ZINC) | 1 | |
| 9 | 45251-MGZ-J11 | DISK, FR. BRAKE(SUNSTAR) (RIGHT HAND SIDE) | 1 | |
| 10 | 45351-MJE-D01 | DISK, L. FR. BRAKE(SUNSTAR) | 1 | |
| 11 | 90105-MGS-D30 | BOLT, DISK, 8X25 | 12 | |
| 12 | 90305-ML7-000 | BOLT, FR. AXLE | 1 | |
| 13 | 91053-MGS-D31 | BEARING, RADIAL BALL(6204)(UU) | 2 | |
| 14 | 91252-MC4-013 | OIL SEAL, 28X47.2X7(ARAI) | 2 | |
