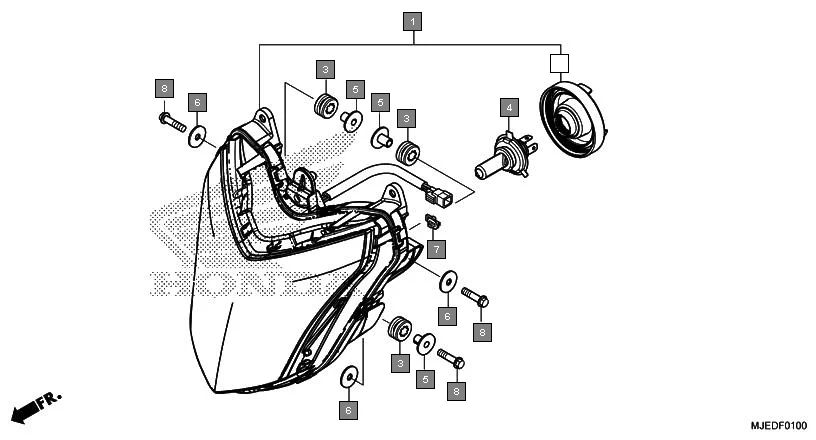

F-1 - HEADLIGHT
HONDA CBR650F CBR650FAG · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33110-MJE-D01 | HEADLIGHT UNIT | 1 | |
| 2 | 33126-S0A-003 | COVER, RUBBER | 1 | |
| 3 | 33706-KW7-900 | RUBBER B, TAILLIGHT MOUNTING | 3 | |
| 4 | 34901-MC7-602 | BULB, HEADLIGHT(12V 60/55W)(STANLEY) | 1 | |
| 5 | 61104-KZZ-900 | COLLAR | 3 | |
| 6 | 77302-KW7-900 | WASHER, HEADLIGHT BRACKET MOUNTING | 3 | |
| 7 | 91535-TA0-003 | CLIP, COUPLER(DARK BROWN) | 1 | |
