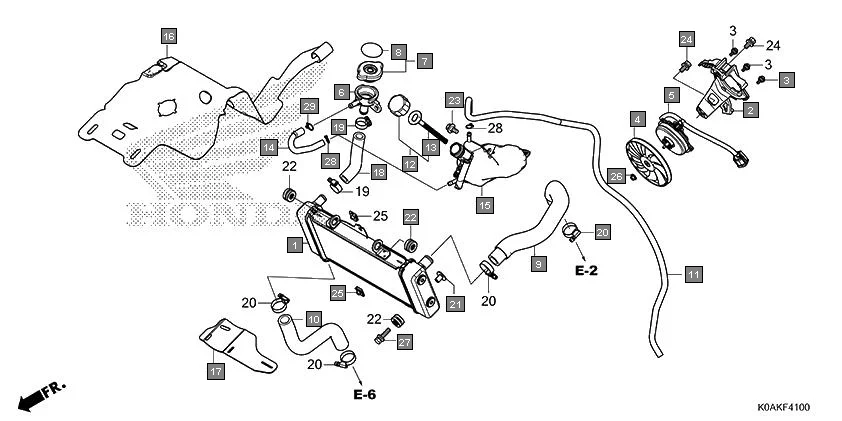

F-41 - RADIATOR
HONDA CB300R CBF300NAN · 29 parts
Parts in This Assembly (29)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 19010-K0A-E11 | RADIATOR COMP. | 1 | |
| 2 | 19015-K0A-E11 | SHROUD COMP. | 1 | |
| 3 | 19016-KEA-003 | SCREW, PAN, 4X8.5 | 3 | |
| 4 | 19020-KVZ-631 | FAN COMP., COOLING | 1 | |
| 5 | 19030-K0A-E11 | MOTOR COMP., FAN | 1 | |
| 6 | 19035-K94-T01 | NECK, FILLER | 1 | |
| 7 | 19037-KVB-902 | CAP COMP., RADIATOR(T.RAD) | 1 | |
| 8 | 19046-KVB-902 | LABEL, RADIATOR CAP(T.RAD) | 1 | |
| 9 | 19062-K0A-E10 | HOSE, RADIATOR UPPER | 1 | |
| 10 | 19067-K0A-E10 | HOSE, RADIATOR LOWER | 1 | |
| 11 | 19104-K0A-E10 | TUBE, RESERVE TANK BREATHER | 1 | |
| 12 | 19105-K94-T00 | CAP ASSY., RESERVE TANK | 1 | |
| 13 | 19106-K94-T00 | PACKING ASSY., RESERVE TANK | 1 | |
| 14 | 19107-K94-T00 | TUBE, RADIATOR BREATHER | 1 | |
| 15 | 19110-K94-T00 | TANK, RADIATOR RESERVE | 1 | |
| 16 | 19125-K0A-E10 | RUBBER, HEAT GUARD | 1 | |
| 17 | 19127-K0A-E10 | RUBBER, RADIATOR LOWER | 1 | |
| 18 | 19504-K94-T00 | HOSE, FILLER NECK | 1 | |
| 19 | 19505-KS6-700 | CLAMP A, WATER HOSE | 2 | |
| 20 | 19517-ML7-691 | CLAMP, HOSE, 22-29MM | 4 | |
| 21 | 61102-KTY-D30 | COLLAR, RADIATOR MOUNTING | 1 | |
| 22 | 61304-415-000 | RUBBER, HEADLIGHT CASE MOUNTING | 3 | |
| 23 | 90116-KVB-900 | BOLT, FLANGE, 6MM | 1 | |
| 24 | 90120-KCR-003 | BOLT-WASHER, 6X16 | 2 | |
| 25 | 90201-KPR-901 | NUT, CLIP, 6MM | 2 | |
| 26 | 90315-MFL-003 | NUT, FLANGE, 3MM | 1 | |
| 27 | 93404-06025-07 | BOLT-WASHER, 6X25 | 1 | |
| 28 | 95002-02100 | CLIP, B-10 TUBE | 2 | |
| 29 | 95002-02120 | CLIP, TUBE(B12) | 1 | |
