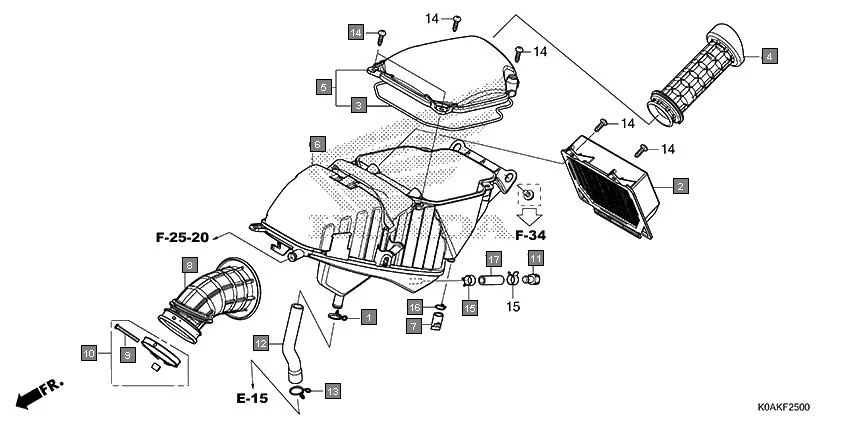

F-25 - AIR CLEANER
HONDA CB300R CBF300NAN · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15772-MN1-670 | CLIP B, BREATHER TUBE | 1 | |
| 2 | 17210-K94-T00 | ELEMENT COMP., AIR CLEANER | 1 | |
| 3 | 17214-K94-T00 | SEAL, AIR CLEANER CASE | 1 | |
| 4 | 17215-K0A-E10 | DUCT, INLET | 1 | |
| 5 | 17225-K94-T00 | COVER SUB ASSY., AIR CLEANER | 1 | |
| 6 | 17230-K0A-E10 | CASE COMP., AIR CLEANER | 1 | |
| 7 | 17236-KVB-900 | PLUG, AIR CLEANER DRAIN | 1 | |
| 8 | 17253-K0A-E10 | TUBE, AIR CLEANER CONNECTING | 1 | |
| 9 | 93500-04035-0G | SCREW, PAN, 4X35 | 1 | |
| 10 | 17235-MKH-D00 | BAND, AIR CLEANER CONNECTING TUBE(56) | 1 | |
| 11 | 17370-419-700 | PLUG, BREATHER TUBE | 1 | |
| 12 | 17371-K0A-E10 | TUBE, BREATHER | 1 | |
| 13 | 90646-657-000 | CLIP, AIR HOSE, 16MM | 1 | |
| 14 | 93903-25480 | SCREW TAPPING 5X20 | 6 | |
| 15 | 95002-41200-08 | CLAMP, TUBE(D12) | 2 | |
| 16 | 95002-80000 | CLIP,C12 TUBE | 1 | |
| 17 | 95003-23004-31 | TUBE, VINYL, 8X12X40 (95003-23001-60M) | 1 | |
