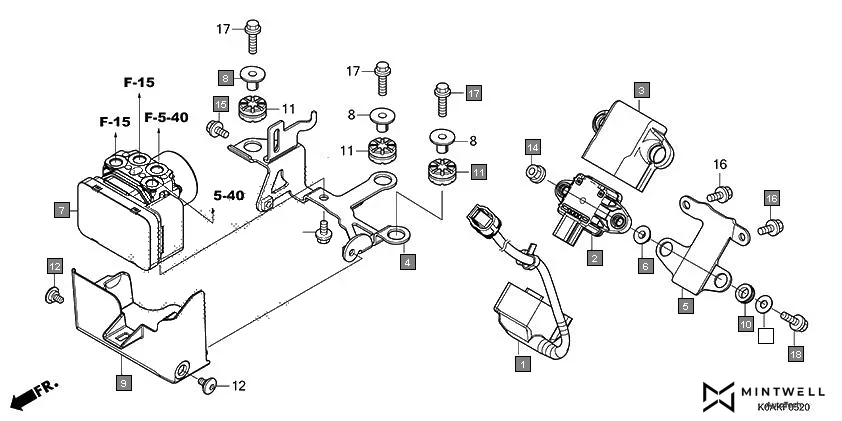

F-5-20 - ABS MODULATOR
HONDA CB300R CBF300NAN · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32105-K0A-E10 | SUB HARNESS, YAW & G-SENSOR | 1 | |
| 2 | 39960-K26-C11 | SENSOR ASSY., YAW & G | 1 | |
| 3 | 39961-K94-T10 | RUBBER, G-SENSOR | 1 | |
| 4 | 50245-K0A-E10 | STAY, ABS MODULATOR | 1 | |
| 5 | 50246-K0A-E10 | STAY, INERTIAL MEASUREMENT UNIT | 1 | |
| 6 | 50249-K26-C10 | COLLAR, 6.2X5 | 2 | |
| 7 | 57110-K0A-E11 | MODULATOR ASSY. | 1 | |
| 7 | 57110-K0A-D22 | MODULATOR ASSY | 1 | |
| 8 | 61102-KTY-D30 | COLLAR, RADIATOR MOUNTING | 3 | |
| 9 | 61410-K94-T10 | COVER A, ABS MODULATOR | 1 | |
| 10 | 64535-K26-C11 | RUBBER, SENSOR MOUNTING | 2 | |
| 11 | 77208-KW7-900 | RUBBER B, SEAT MOUNTING | 3 | |
| 12 | 90114-KPH-700 | SCREW, SPECIAL, 5X11 | 2 | |
| 13 | 90439-MB0-000 | WASHER, RR. COVER GROMMET | 2 | |
| 14 | 94050-06080 | NUT, FLANGE, 6MM | 2 | |
| 15 | 95701-06010-08 | BOLT, FLANGE, 6X10 | 2 | |
| 16 | 95701-06012-07 | BOLT, FLANGE, 6X12 | 2 | |
| 17 | 95701-06022-07 | BOLT,FLANGE,6 X 22 | 3 | |
| 18 | 95701-06022-08 | BOLT, FLANGE, 6X22 | 2 | |
