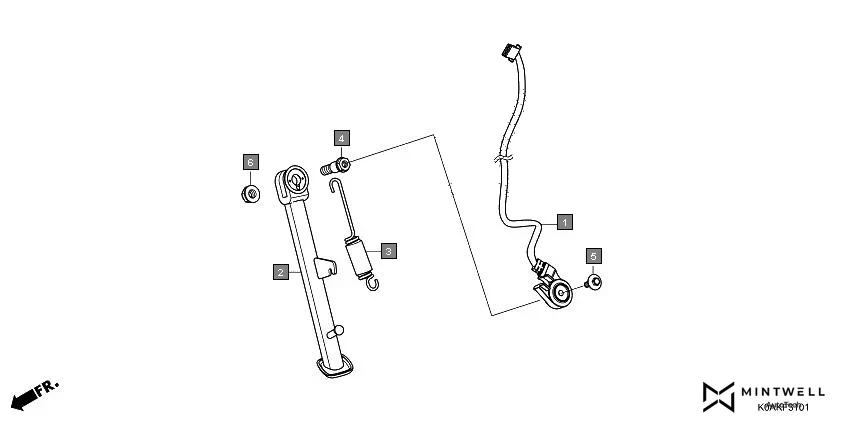

F-31-1 - SIDE STAND(CBF300NAN)
HONDA CB300R CBF300NAN · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35700-K93-N01 | SWITCH ASSY., SIDE STAND | 1 | |
| 2 | 50530-K0A-DB0 | BAR COMP., SIDE STAND | 1 | |
| 3 | 50542-K0A-DB0 | SPRING ASSY., SIDE STAND | 1 | |
| 4 | 90108-KPP-860 | BOLT, SIDE STAND PIVOT | 1 | |
| 5 | 90147-KVB-900 | BOLT, SPECIAL, 6X16 | 1 | |
| 6 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 1 | |
