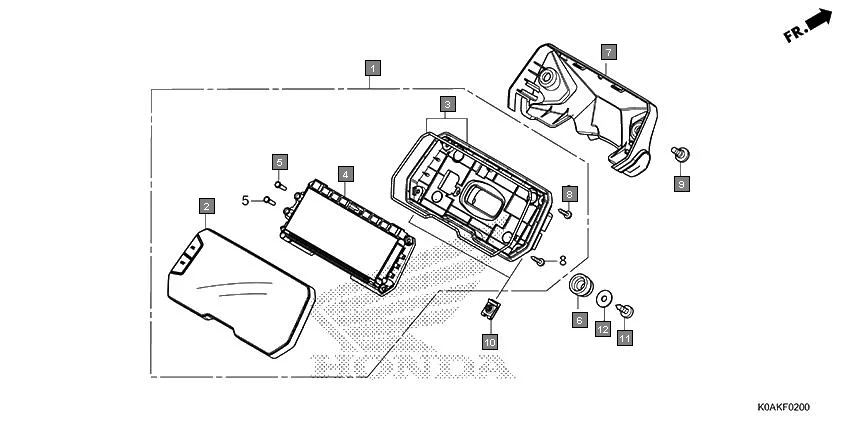

F-2 - METER
HONDA CB300R CBF300NAN · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37100-K0A-D11 | METER ASSY., COMBINATION(KPH) | 1 | |
| 2 | 37110-K0A-E12 | CASE ASSY., UPPER | 1 | |
| 3 | 37120-K0A-D11 | CASE ASSY., UNDER | 1 | |
| 4 | 37130-K0A-D11 | METER COMP., LCD | 1 | |
| 5 | 37205-K94-T01 | KEY, TOP | 2 | |
| 6 | 37215-KZZ-900 | RUBBER, METER SETTING | 3 | |
| 7 | 64110-K94-T00 | COVER, METER | 1 | |
| 8 | 90101-KY6-008 | SCREW, TAPPING, 3X14 | 5 | |
| 9 | 90134-KPP-T00 | SCREW, PAN, 5X14 | 2 | |
| 10 | 90677-KAN-T00 | NUT, CLIP, 5MM | 2 | |
| 11 | 93913-25380 | SCREW, TAPPING, 5X14(PO) | 3 | |
| 12 | 94103-05700 | WASHER, PLAIN, 5MM | 3 | |
