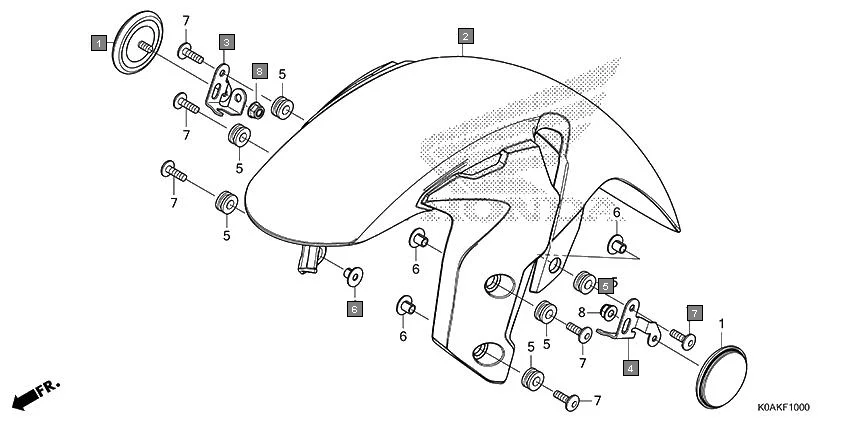

F-10 - FRONT FENDER
HONDA CB300R CBF300NAN · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KTE-601 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 61000-K94-T10ZA | FENDER SET, FR.(WL) *TYPE1* | 1 | |
| 2 | 61000-K94-T10ZB | FENDER SET, FR.(WL) *TYPE2* | 1 | |
| 3 | 61102-K98-E00 | STAY, R. FR. REFLECTOR | 1 | |
| 4 | 61103-K98-E00 | STAY, L. FR. REFLECTOR | 1 | |
| 5 | 80101-165-000 | RUBBER, RR. FENDER CUSHION | 6 | |
| 6 | 84706-163-670 | COLLAR TAIL LIGHT MTG | 6 | |
| 7 | 90118-MEL-000 | SCREW, PAN, 6X20 | 6 | |
| 8 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
