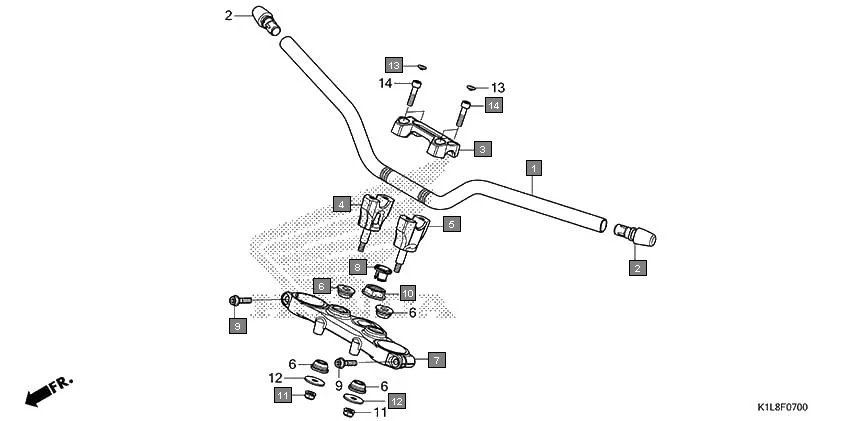

F-7 - HANDLE PIPE/TOP BRIDGE
HONDA Hornet 2.0 CBF190MAM · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53100-K1L-D00ZA | PIPE, STEERING HANDLE *NHB07M* MAT EARL SILVER METALLIC | 1 | |
| 2 | 53105-KRC-900 | END STRG. HANDLE | 2 | |
| 3 | 53131-K1L-D00ZA | HOLDER, HANDLE UPPER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 4 | 53132-K1L-D00ZA | HOLDER, R. HANDLE PIPE UNDER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 5 | 53133-K1L-D00ZA | HOLDER, L. HANDLE PIPE UNDER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 6 | 53136-K1L-D00 | RUBBER, HANDLE CUSHION | 4 | |
| 7 | 53230-K1L-D00ZA | BRIDGE, FORK TOP *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 8 | 53232-K43-D00 | CAP, STEERING NUT | 1 | |
| 9 | 90160-K1L-D00 | BOLT, FLANGE SOCKET, 8X35 | 2 | |
| 10 | 90304-K43-D00 | NUT, STEERING STEM | 1 | |
| 11 | 90309-KTE-911 | NUT,FLG PT 8MM | 2 | |
| 12 | 90535-K26-900 | WASHER, HANDLE UNDER HOLDER | 2 | |
| 13 | 91455-KL8-710 | CAP, SOCKET BOLT, 8MM | 4 | |
| 14 | 96600-08032-00 | BOLT FLANGE, 8 X 32 | 4 | |
