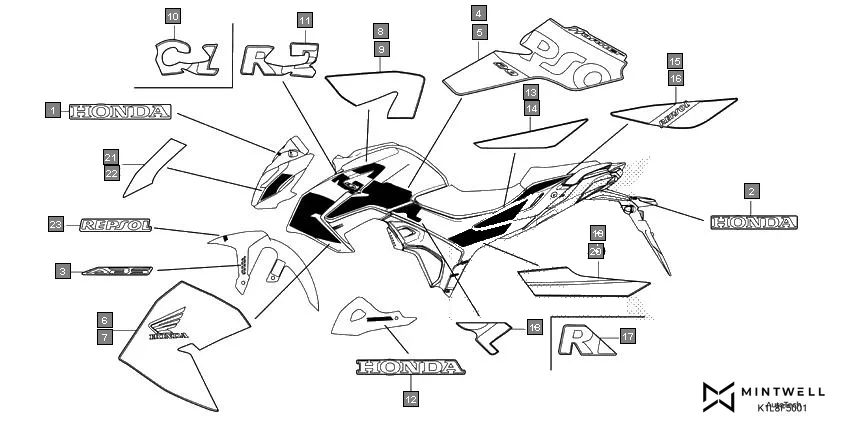

F-50-1 - MARK(CBF190MAM)
HONDA Hornet 2.0 CBF190MAM · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-K1L-D00ZA | MARK, HONDA(70MM) *TYPE1* | 1 | |
| 2 | 86102-K1L-D00ZA | MARK, HONDA(60MM) *TYPE1* | 1 | |
| 3 | 86611-K43-D20ZC | MARK, ABS *TYPE1* (R. SIDE ONLY) | 1 | |
| 4 | 86641-K1L-D20ZA | STRIPE A, R. FUEL TANK COVER *TYPE1* | 1 | |
| 5 | 86642-K1L-D20ZA | STRIPE A, L. FUEL TANK COVER *TYPE1* | 1 | |
| 6 | 86645-K1L-D20ZA | STRIPE A, R. SHROUD GARNISH *TYPE1* | 1 | |
| 7 | 86646-K1L-D20ZA | STRIPE A, L. SHROUD GARNISH *TYPE1* | 1 | |
| 8 | 86647-K1L-D20ZA | STRIPE B, R. SHROUD GARNISH *TYPE1* | 1 | |
| 9 | 86648-K1L-D20ZA | STRIPE B, L. SHROUD GARNISH *TYPE1* | 1 | |
| 10 | 86651-K1L-D20ZA | STRIPE C, R. SHROUD GARNISH *TYPE1* | 1 | |
| 11 | 86652-K1L-D20ZA | STRIPE C, L. SHROUD GARNISH *TYPE1* | 1 | |
| 12 | 86655-K1L-D20ZA | MARK, HONDA(100MM) *TYPE1* | 2 | |
| 13 | 86831-K1L-D20ZA | STRIPE A, R. RR. GARNISH *TYPE1* | 1 | |
| 14 | 86832-K1L-D20ZA | STRIPE A, L. RR. GARNISH *TYPE1* | 1 | |
| 15 | 86833-K1L-D20ZA | STRIPE B, R. RR. GARNISH *TYPE1* | 1 | |
| 16 | 86834-K1L-D20ZA | STRIPE B, L. RR. GARNISH *TYPE1* | 1 | |
| 17 | 86835-K1L-D20ZA | STRIPE A, R. SIDE COVER B *TYPE1* | 1 | |
| 18 | 86836-K1L-D20ZA | STRIPE A, L. SIDE COVER B *TYPE1* | 1 | |
| 19 | 86837-K1L-D20ZA | STRIPE B, R. SIDE COVER B *TYPE1* | 1 | |
| 20 | 86838-K1L-D20ZA | STRIPE B, L. SIDE COVER B *TYPE1* | 1 | |
| 21 | 88613-K1L-D20ZA | STRIPE, R. FR. GARNISH *TYPE1* | 1 | |
| 22 | 88614-K1L-D20ZA | STRIPE, L. FR. GARNISH *TYPE1* | 1 | |
| 23 | 88615-K1L-D20ZA | STRIPE, FR. FENDER A *TYPE1* | 1 | |
