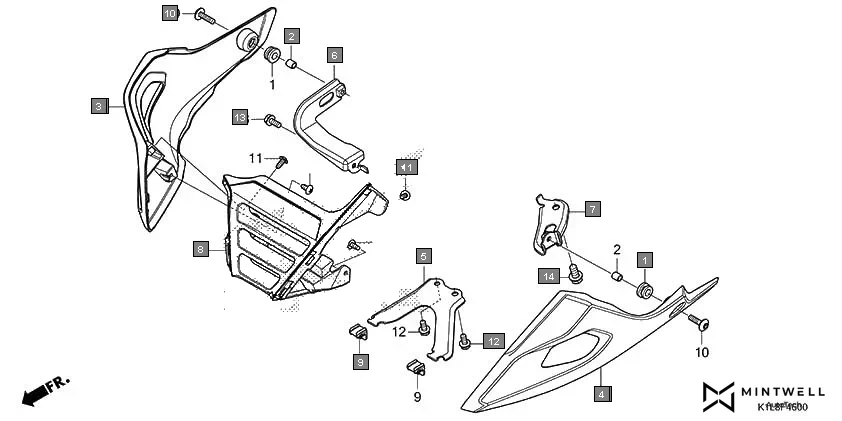

F-46 - UNDER COWL
HONDA Hornet 2.0 CBF190MAM · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61105-KRY-900 | RUBBER, FR.FENDER MTG. | 2 | |
| 2 | 61314-KTC-900 | COLLAR, COWL MTG | 2 | |
| 3 | 64311-K1L-D00ZB | COWL, R. UNDER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 3 | 64311-K1L-D00ZC | COWL, R. UNDER *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 3 | 64311-K1L-D00ZE | COWL, R. UNDER *B227M* MAT MARVEL BLUE METALLIC | 1 | |
| 3 | 64311-K1L-D00ZF | COWL, R. UNDER *R395M*. MAT SANGRIA RED METALLIC | 1 | |
| 4 | 64321-K1L-D00ZB | COWL, L. UNDER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 4 | 64321-K1L-D00ZC | COWL, L. UNDER *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 4 | 64321-K1L-D00ZD | COWL, L. UNDER *B227M* MAT MARVEL BLUE METALLIC | 1 | |
| 4 | 64321-K1L-D00ZE | COWL, L. UNDER *R395M*. MAT SANGRIA RED METALLIC | 1 | |
| 5 | 64340-K0E-D20 | STAY, UNDER COWL(FR.) | 1 | |
| 6 | 64351-K1L-D00 | STAY, R. UNDER COWL | 1 | |
| 7 | 64352-K1L-D00 | STAY, L. UNDER COWL | 1 | |
| 8 | 64361-K1L-D00 | COWL, CENTER UNDER | 1 | |
| 9 | 83502-KCC-900 | GROMMET, SIDE COVER | 2 | |
| 12 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
| 13 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 1 | |
