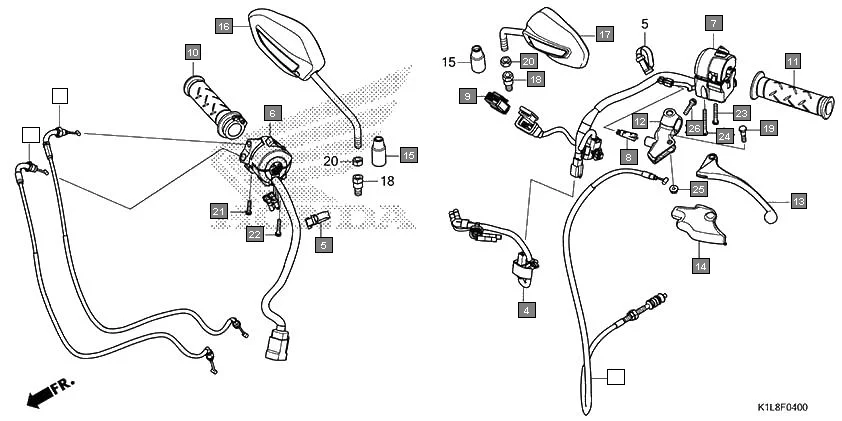

F-4 - HANDLE LEVER/SWITCH/CABLE/MIRROR
HONDA Hornet 2.0 CBF190MAM · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-K1L-D01 | CABLE COMP. A, THROTTLE | 1 | |
| 2 | 17920-K1L-D01 | CABLE COMP. B, THROTTLE | 1 | |
| 3 | 22870-K1L-D01 | CABLE COMP., CLUTCH | 1 | |
| 4 | 32107-K1L-D00 | SUB HARNESS, FR. | 1 | |
| 5 | 32161-KSP-920 | BAND B1, WIRE | 2 | |
| 6 | 35150-K1L-D01 | SWITCH ASSY., STARTER & ENGINE STOP | 1 | |
| 7 | 35200-K1L-D01 | SWITCH ASSY., WINKER | 1 | |
| 8 | 35330-KYJ-611 | SWITCH ASSY., CLUTCH | 1 | |
| 9 | 38301-K1L-D01 | RELAY COMP., WINKER(L.E.D.) | 1 | |
| 10 | 53140-K1K-D00 | GRIP COMP., THROTTLE | 1 | |
| 11 | 53166-KSP-A70 | GRIP L HANDLE | 1 | |
| 12 | 53172-KTE-930 | BRKT L HNDL LEVER | 1 | |
| 13 | 53178-K21-900 | LEVER COMP., L. HANDLE | 1 | |
| 14 | 53179-KWF-950 | COVER, L. HANDLE LEVER | 1 | |
| 15 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 16 | 88210-K38-941ZA | MIRROR COMP., R.*NH1* BLACK | 1 | |
| 17 | 88220-K38-941ZA | MIRROR COMP., L. *NH1*BLACK | 1 | |
| 18 | 90103-K38-940 | BOLT, ADAPTER, 10MM | 2 | |
| 19 | 90114-310-000 | BOLT, HANDLE LEVER PIVOT | 1 | |
| 20 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
| 21 | 93892-05020-07 | SCREW, WASHER, 5X20 | 1 | |
| 22 | 93892-05025-07 | SCREW, WASHER, 5X25 | 1 | |
| 23 | 93892-05035-07 | SCREW, WASHER, 5X35 | 1 | |
| 24 | 93892-05045-07 | SCREW, WASHER, 5X45 | 1 | |
