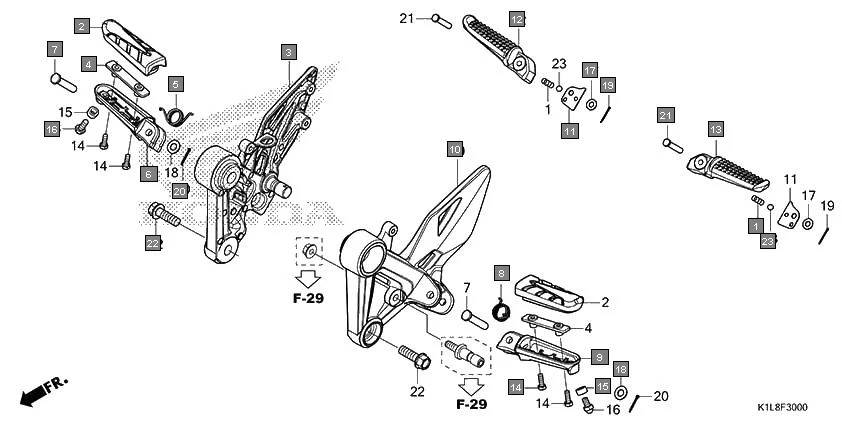

F-30 - STEP
HONDA Hornet 2.0 CBF190MAM · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 28333-300-000 | SPRING KICK STARTER STOPPER | 2 | |
| 2 | 50610-K15-900 | RUBBER, MAIN STEP | 2 | |
| 3 | 50610-K1L-D00ZA | HOLDER, R. STEP *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 4 | 50613-K45-N40 | PLATE, STEP SETTING | 2 | |
| 5 | 50617-445-840 | SPG. R STEP RETURN | 1 | |
| 6 | 50635-K1L-D00 | ARM, R. MAIN STEP | 1 | |
| 7 | 50639-ML0-010 | PIN, STEP BAR | 2 | |
| 8 | 50644-445-840 | SPG. L STEP RETURN | 1 | |
| 9 | 50645-K1L-D00 | ARM, L. MAIN STEP | 1 | |
| 10 | 50710-K1L-D00ZA | HOLDER, L. STEP *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 11 | 50711-K1L-D00 | PLATE, PILLION STEP CLICK | 1 | |
| 12 | 50720-K1L-D00 | ARM, R. PILLION STEP | 1 | |
| 13 | 50730-K1L-D00 | ARM, L. PILLION STEP | 1 | |
| 14 | 90108-K15-900 | BOLT, SPECIAL, 5X14 | 4 | |
| 15 | 90311-K15-900 | COLLAR, 6MM | 2 | |
| 16 | 92501-06016-0A | BOLT, CAP, 6X16 | 2 | |
| 17 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 18 | 94102-08000 | WASHER, PLAIN, 8MM | 2 | |
| 19 | 94201-16150 | PIN, SPLIT, 1.6 X 15 | 2 | |
| 21 | 90131-KWP-F00 | PIN, PILLION STEP | 2 | |
| 22 | 95701-10030-00 | BOLT, FLANGE, 10X30 | 2 | |
| 23 | 96211-08000 | BALL STEEL 8 MM | 2 | |
