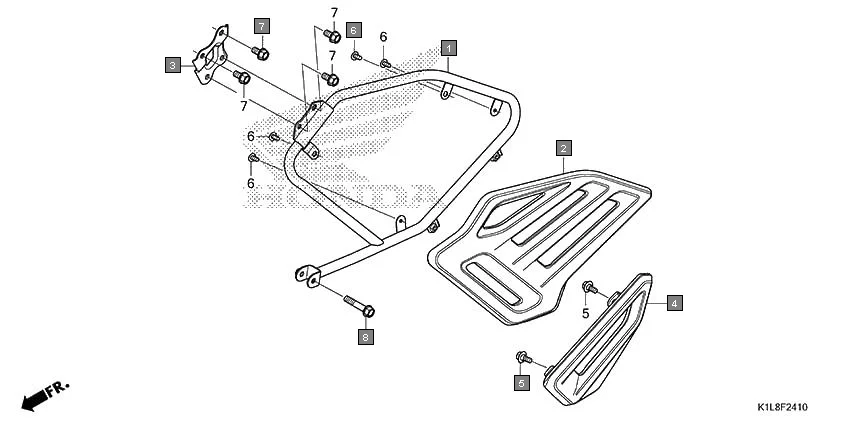

F-24-10 - SARI GUARD
HONDA Hornet 2.0 CBF190MAM · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51103-K1L-D00 | GUARD COMP., SARI | 1 | |
| 2 | 51104-K43-900 | COVER, SARI GUARD | 1 | |
| 3 | 51105-K1L-D00 | PLATE, SARI GUARD | 1 | |
| 4 | 51108-K43-D00 | COVER B, SARI | 1 | |
| 5 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 7 | 95701-08014-07 | BOLT, FLANGE, 8X14 | 4 | |
| 8 | 95701-08040-07 | BOLT FLANGE,8 X 40 | 1 | |
