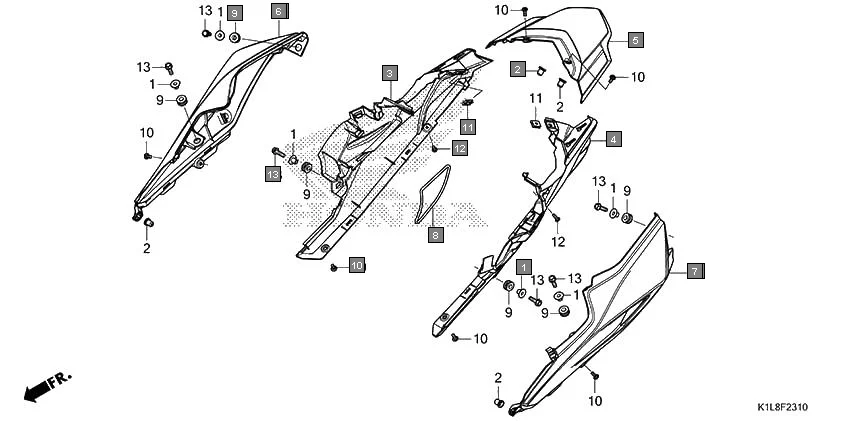

F-23-10 - REAR COWL
HONDA Hornet 2.0 CBF190MAM · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17232-KYJ-900 | COLLAR, AIR CLEANER MOUNTING | 6 | |
| 3 | 77211-K1L-D00 | COWL, R. RR. | 1 | |
| 4 | 77221-K1L-D00 | COWL, L. RR. | 1 | |
| 5 | 77231-K1L-D00 | COWL, RR. CENTER | 1 | |
| 6 | 77271-K1L-D00ZB | GARNISH, R. RR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 6 | 77271-K1L-D00ZC | GARNISH, R. RR. *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 6 | 77271-K1L-D00ZD | GARNISH, R. RR. *B227M* MAT MARVEL BLUE METALLIC | 1 | |
| 6 | 77271-K1L-D00ZE | GARNISH, R. RR. *R395M*. MAT SANGRIA RED METALLIC | 1 | |
| 7 | 77281-K1L-D00ZB | GARNISH, L. RR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 7 | 77281-K1L-D00ZC | GARNISH, L. RR. *NHB05P* PEARL IGNEOUS BLACK | 1 | |
| 7 | 77281-K1L-D00ZD | GARNISH, L. RR. *B227M* MAT MARVEL BLUE METALLIC | 1 | |
| 7 | 77281-K1L-D00ZE | GARNISH, L. RR. *R395M*. MAT SANGRIA RED METALLIC | 1 | |
| 8 | 80124-K26-900 | BAND, TOOL | 1 | |
| 10 | 90101-GE0-000 | SCREW, HINGE PATCH | 6 | |
| 11 | 90320-KTE-600 | NUT, SPRING, 5MM | 2 | |
| 12 | 93903-24480 | SCREW, TAPPING, 4X16 | 2 | |
