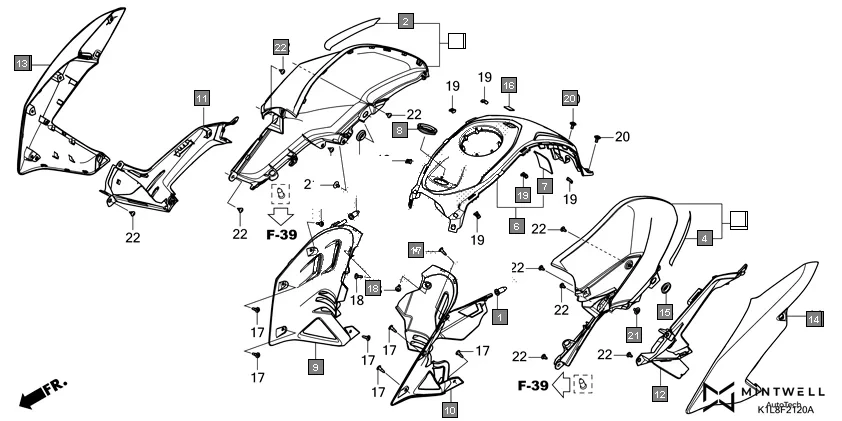

F-21-20 - SHROUD/TANK COVER
HONDA Hornet 2.0 CBF190MAM · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 64413-K1L-D00 | FILM, R. TANK COVER PROTECTOR | 1 | |
| 3 | 64415-K1L-D00ZA | COVER ASSY., R. FUEL TANK(WL) *TYPE4* | 1 | |
| 3 | 64415-K1L-D00ZB | COVER ASSY., R. FUEL TANK(WL) *TYPE3* | 1 | |
| 3 | 64415-K1L-D00ZC | COVER ASSY., R. FUEL TANK(WL) *TYPE2* | 1 | |
| 3 | 64415-K1L-D00ZE | COVER ASSY., R. FUEL TANK(WL) *TYPE1 1* | 1 | |
| 4 | 64423-K1L-D00 | FILM, L. TANK COVER PROTECTOR | 1 | |
| 5 | 64425-K1L-D00ZA | COVER ASSY., L. FUEL TANK(WL) *TYPE4* | 1 | |
| 5 | 64425-K1L-D00ZB | COVER ASSY., L. FUEL TANK(WL) *TYPE3* | 1 | |
| 5 | 64425-K1L-D00ZC | COVER ASSY., L. FUEL TANK(WL) *TYPE2* | 1 | |
| 5 | 64425-K1L-D00ZE | COVER ASSY., L. FUEL TANK(WL) *TYPE1 1* | 1 | |
| 6 | 64431-K1L-D00 | COVER, FUEL TANK CENTER | 1 | |
| 7 | 64432-K43-900 | SPONGE, FUEL TANK CENTER COVER RUBBER | 1 | |
| 8 | 64460-K1L-D00 | COVER, KEY | 1 | |
| 9 | 64461-K1L-D00 | COVER, R. FUEL TANK INNER | 1 | |
| 10 | 64471-K1L-D00 | COVER, L. FUEL TANK INNER | 1 | |
| 11 | 64481-K1L-D00 | COVER, R. FUEL TANK LOWER | 1 | |
| 12 | 64491-K1L-D00 | COVER, L. FUEL TANK LOWER | 1 | |
| 13 | 64510-K1L-D00ZA | GARNISH SET, R. SHROUD(WL) *TYPE4* | 1 | |
| 13 | 64510-K1L-D00ZB | GARNISH SET, R. SHROUD(WL) *TYPE3* | 1 | |
| 13 | 64510-K1L-D00ZC | GARNISH SET, R. SHROUD(WL) *TYPE2* | 1 | |
| 13 | 64510-K1L-D00ZD | GARNISH SET, R. SHROUD(WL) *TYPE1* | 1 | |
| 14 | 64520-K1L-D00ZA | GARNISH SET, L. SHROUD(WL) *TYPE4* | 1 | |
| 14 | 64520-K1L-D00ZB | GARNISH SET, L. SHROUD(WL) *TYPE3* | 1 | |
| 14 | 64520-K1L-D00ZC | GARNISH SET, L. SHROUD(WL) *TYPE2* | 1 | |
| 14 | 64520-K1L-D00ZD | GARNISH SET, L. SHROUD(WL) *TYPE1* | 1 | |
| 15 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
| 16 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 17 | 90116-SP0-003 | CLIP, BUMPER SEAL | 8 | |
| 18 | 90134-KPP-T00 | SCREW, PAN, 5X14 | 2 | |
| 19 | 90651-K14-A31 | CLIP, SLIDE | 6 | |
| 20 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 2 | |
| 21 | 93894-05010-07 | SCREW-WASHER, 5X10 | 2 | |
