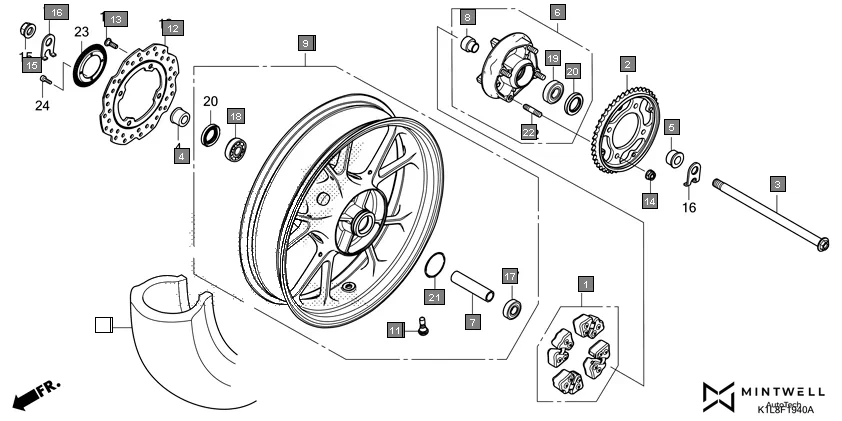

F-19-40 - REAR WHEEL
HONDA Hornet 2.0 CBF190MAM · 23 parts
Parts in This Assembly (23)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-KSP-900 | DAMPER SET, WHEEL | 1 | |
| 2 | 41200-K1L-D00 | SPROCKET COMP., FINAL DRIVEN (45T) | 1 | |
| 3 | 42301-K43-900 | AXLE, RR. WHEEL | 1 | |
| 4 | 42312-KYJ-900 | COLLAR, R. RR. WHEEL SIDE | 1 | |
| 5 | 42313-KYJ-900 | COLLAR, L. RR. WHEEL SIDE | 1 | |
| 6 | 42615-K43-900ZA | FLANGE SUB ASSY., RR. DRIVEN *NH303M* MAT AXIS GRAY METALLIC + Yellow | 1 | |
| 7 | 42620-KYJ-900 | COLLAR, RR. WHEEL DISTANCE | 1 | |
| 8 | 42625-MC4-000 | COLLAR B, RR. AXLE DISTANCE | 1 | |
| 9 | 42650-K1L-D00ZE | WHEEL SUB ASSY., RR.(WL) *TYPE4* | 1 | |
| 9 | 42650-K1L-D00ZF | WHEEL SUB ASSY., RR.(WL) *TYPE3* | 1 | |
| 9 | 42650-K1L-D00ZG | WHEEL SUB ASSY., RR.(WL) *TYPE2* | 1 | |
| 9 | 42650-K1L-D00ZH | WHEEL SUB ASSY., RR.(WL) *TYPE1* | 1 | |
| 10 | 42711-K1L-D01 | TIRE, RR.(MAXXIS) (140/70-17 M/C 66S) | 1 | |
| 10 | 42711-K43-901 | TIRE, RR.(MRF) (140/70-17 M/C 66S) | 1 | |
| 12 | 43251-K43-911 | DISK, RR. BRAKE(YUTAKA) | 1 | |
| 15 | 90305-KYJ-711 | NUT, FLANGE, 16MM (PREVAILING TORQUE) | 1 | |
| 16 | 90559-KYJ-900 | WASHER, RR. SWINGARM | 2 | |
| 17 | 91051-K43-901 | BEARING, RADIAL BALL, 6203U (NBC) | 1 | |
| 18 | 91052-K43-901 | BEARING, RADIAL BALL, 6303U (NBC) | 1 | |
| 19 | 91082-KYJ-711 | BEARING, RADIAL BALL, 6204UU (NEI) | 1 | |
| 20 | 91253-443-761 | DUST SEAL, 30X47X8(ARAI) | 2 | |
| 21 | 91352-KSP-900 | O RING, 51 X 2 | 1 | |
| 22 | 92915-10025-0E | BOLT, STUD II, 10X25 | 4 | |
