F-1 - HEADLIGHT

HONDA Hornet 2.0 CBF190MAM · 5 parts

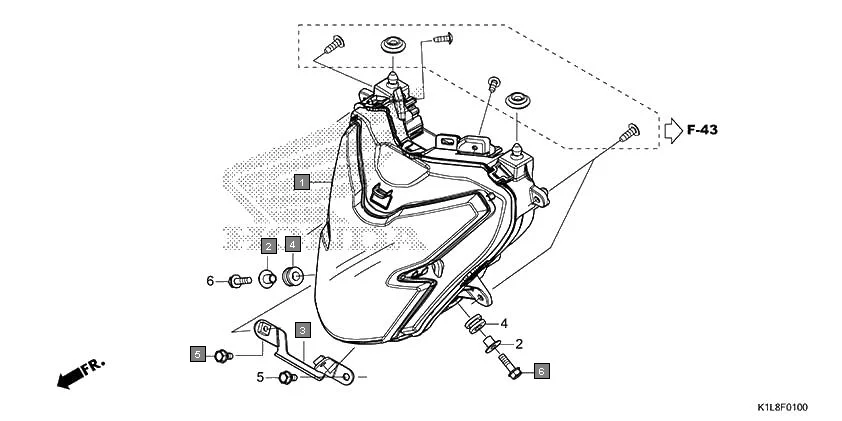

F-1 HEADLIGHT assembly diagram for HONDA Hornet 2.0 CBF190MAM

Parts in This Assembly (5)

Ref # Part Number Description Qty
1 33100-K1L-D01 HEADLIGHT ASSY.(KOITO) 1
2 33111-K1L-D00 COLLAR, HEADLIGHT MOUNTING 2
3 61313-K1L-D00 STAY, FR. COWL LOWER 1
4 83545-KCJ-690 RUBBER, SIDE COVER 2
6 95701-06020-00 BOLT, FLANGE, 6X20 2
